Twin-screw washer for heavy scrubbing duty and dirty feeds.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 9,150 × 3,350 × 4,050 mm |
|---|---|
| Feed Opening | Twin screws 920 mm diameter |
| Capacity Range | Typical 60–150 t/h, depending on gradation and clay content |
| Motor Power | 2 × 22 kW |
| Weight | 13,700 kg (typical) |
| Certification | CE machinery directive design basis |
| Warranty | 24 months |

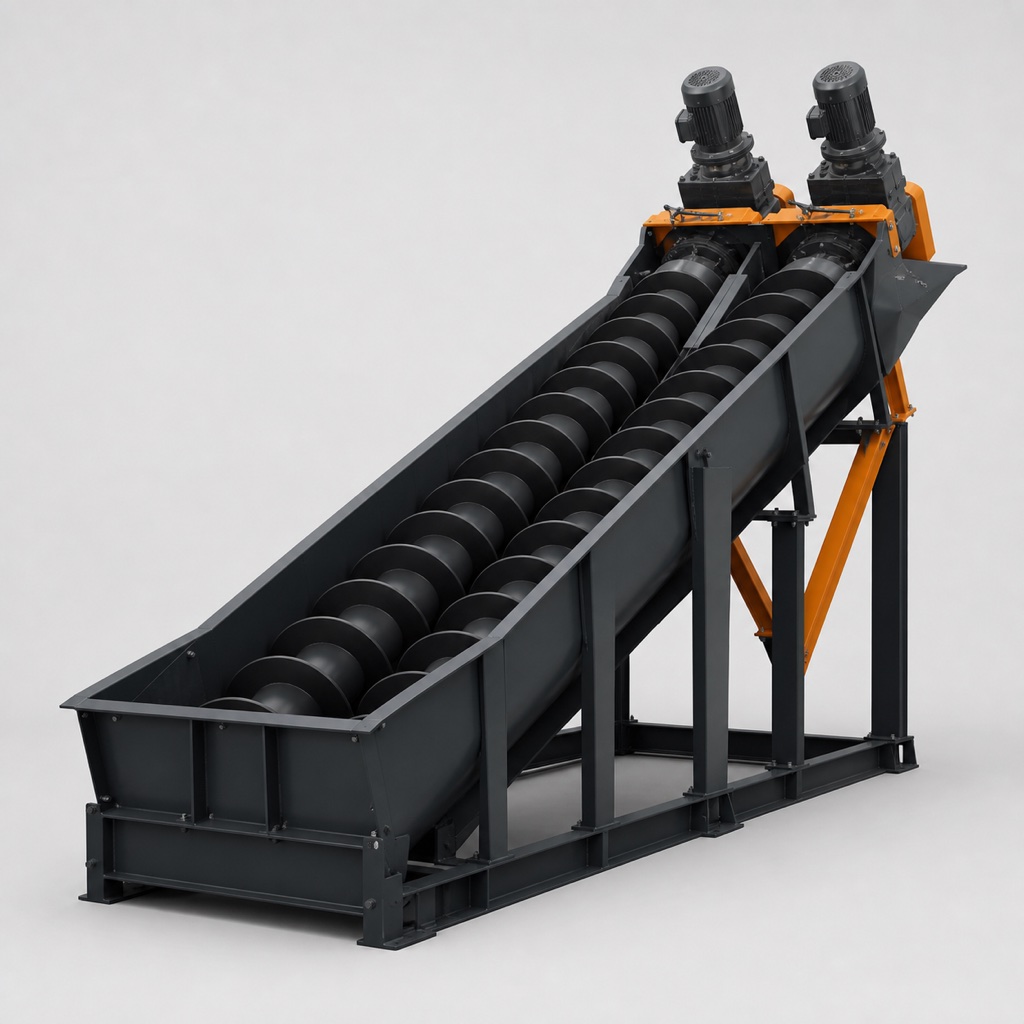

When the raw feed carries real clay — not dust, but sticky lump clay — the RS-SW45 does the scrubbing a bucket wheel cannot. Twin counter-rotating screws knead and shear the material against itself along an inclined tub, breaking down contamination while conveying sand up to the dewatered discharge.
Screw flights carry bolt-on wear shoes in abrasion-resistant alloy, replaced individually as the wear pattern develops. Drive is by twin shaft-mounted reducers with a shared electrical interlock.
Bucket-wheel washer that cleans and dewaters sand in one unit.
