Drops into a straight duct run to add a pleated bank and a UV chamber without rebuilding the air handler.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 920 × 620 × 480 mm |
|---|---|
| Airflow | Up to 4,000 m³/h |
| Power | 230 V / 1 ph, 190 W with lamps |
| Noise Level | No moving parts, duct-borne only |
| Certification | CE, EN 1822 filter class basis |
| Warranty | 2 years parts |

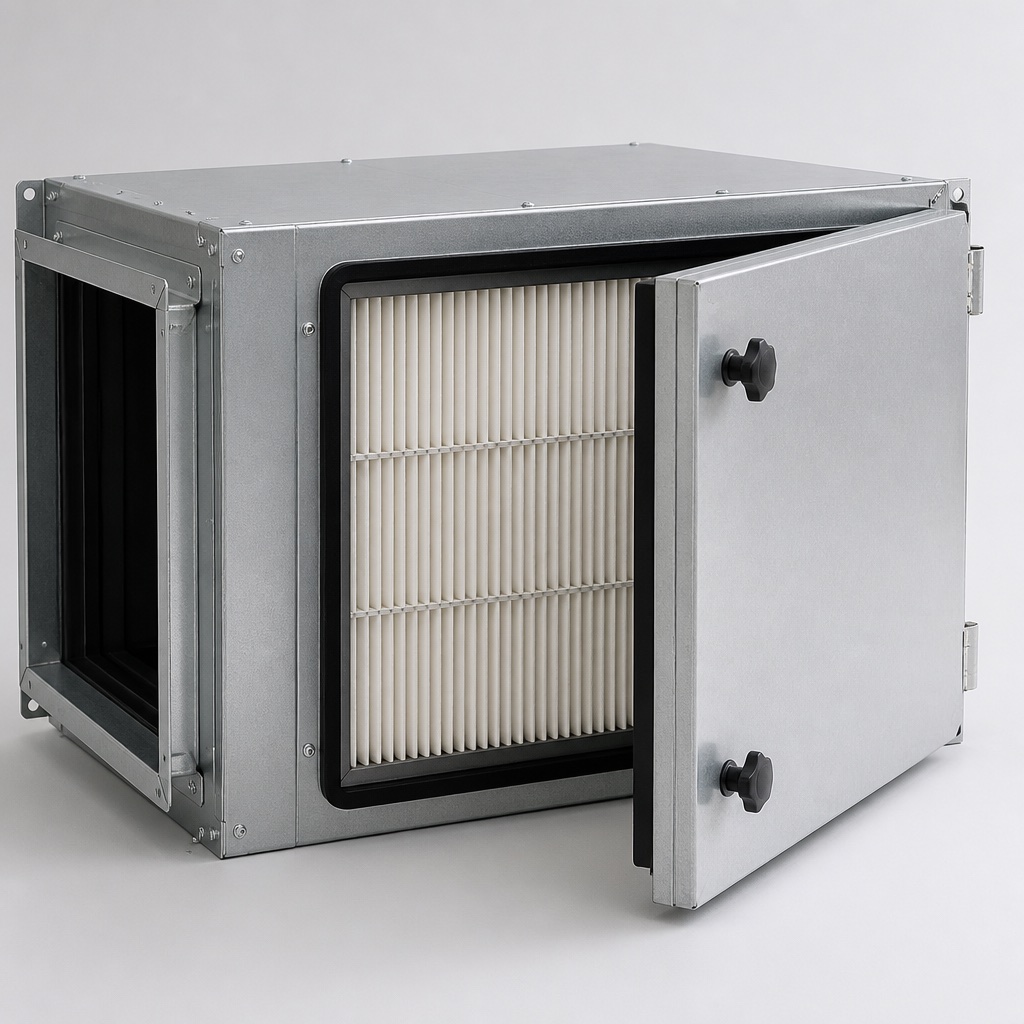

The TV-A75 retrofits air quality into systems that were designed before anyone asked: a pleated filter bank and a UV chamber in one duct-mounted housing that installs in a straight run without rebuilding the AHU.
The filter rack slides out through a latched side door, and a differential-pressure port pair makes filter monitoring a five-minute BMS point, not a guess. Lamp hours log locally so replacement happens on schedule.
Coarse, fine and carbon stages behind a coin-opened door, and 29 dB(A) on the…
