Identical 160 kW modules share one header set; pull a module for service and the header stays wet.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 2,020 × 1,060 × 2,240 mm per module |
|---|---|
| Cooling Capacity | 160 kW per module, banks to 1,280 kW |
| Airflow | 48,000 m³/h per module |
| Power | 400 V / 3 ph / 50 Hz |
| Noise Level | 67 dB(A) at 10 m |
| Certification | CE, EN 14511 test basis |
| Warranty | 5 years compressor, 2 years parts |

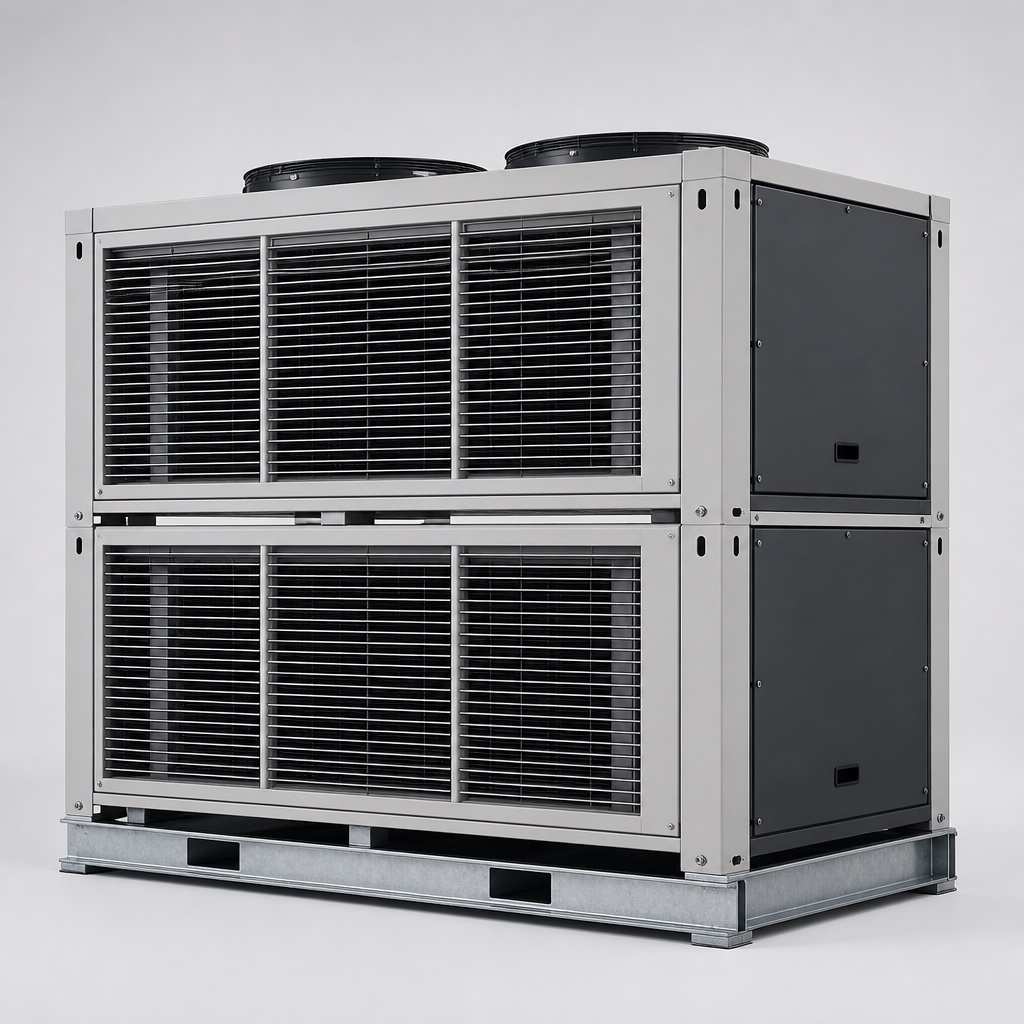

The TV-H320 assembles capacity from identical modules that share headers and a bank controller: start with two, finish with eight, and replace any module without draining the system. Redundancy is designed in — the bank sheds one module and the building barely notices.
The controller rotates lead-lag duty so run hours accumulate evenly across modules, and each module reports its own sensors to the plant BMS over open protocols.
Its defrost reads coil and ambient sensors together, so the machine thaws on evidence…
