Casing leakage is measured to EN 1886 on every single unit, and the reading is stamped inside the access door.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 2,860 × 1,320 × 1,680 mm |
|---|---|
| Airflow | 5,500 m³/h nominal |
| Cooling Capacity | Coil sections sized to project duty |
| Power | 400 V / 3 ph / 50 Hz |
| Noise Level | 52 dB(A) at 3 m |
| Certification | CE, EN 1886 casing test basis |
| Warranty | 2 years parts |

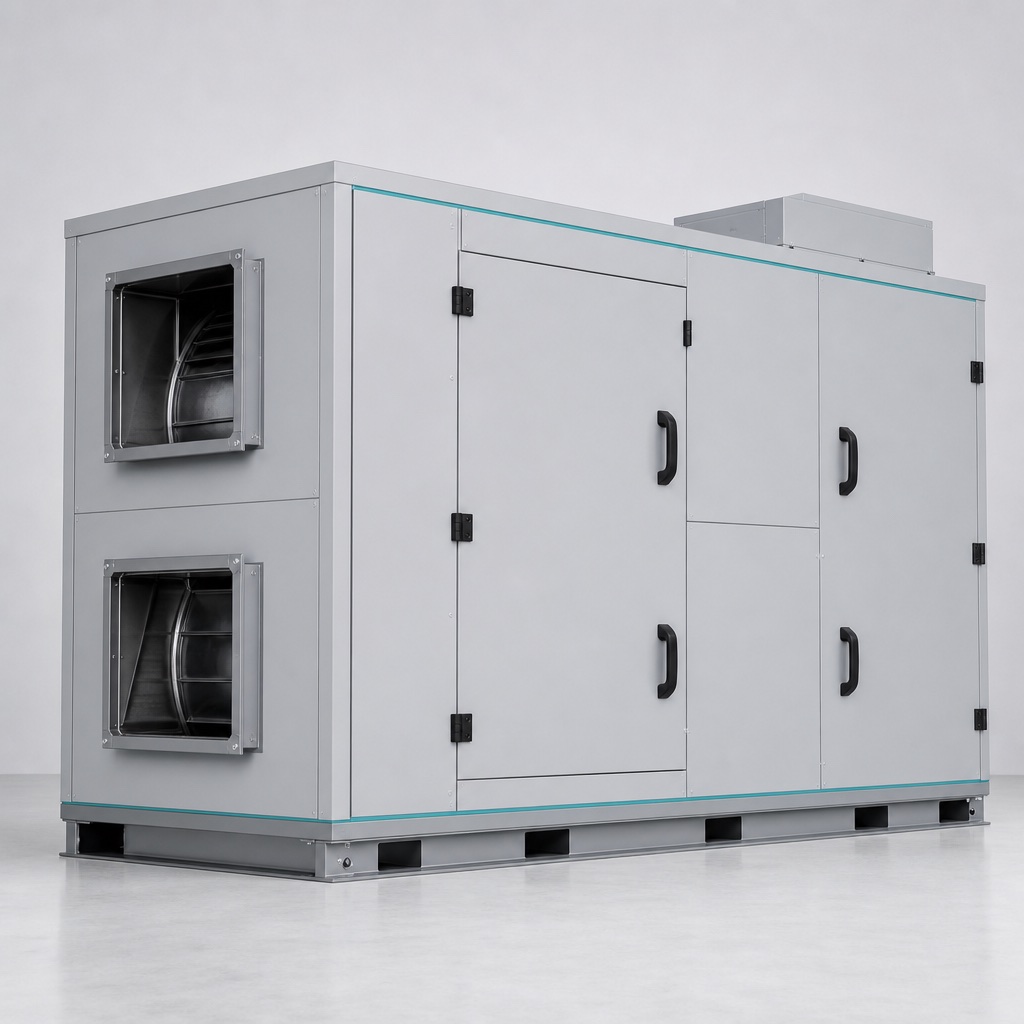

The TV-V200 conditions outdoor air for buildings that take ventilation seriously: filtration, heat recovery and tempering coils in a floor-standing cabinet with double-wall insulated panels that keep the casing quiet and sweat-free.
The hinged inspection door opens onto a walk-in-depth service corridor — filters, core and coils each pull out on their own rails. Casing air leakage is factory-tested on every unit, and the result is stamped on the data plate inside the door.
A crossflow core inside a 380 mm void, with EC fans that keep 800…
