Diffusion

Quadra QRD-17 Diffuser

A sculpted solid-wood panel that keeps a room lively but controlled.

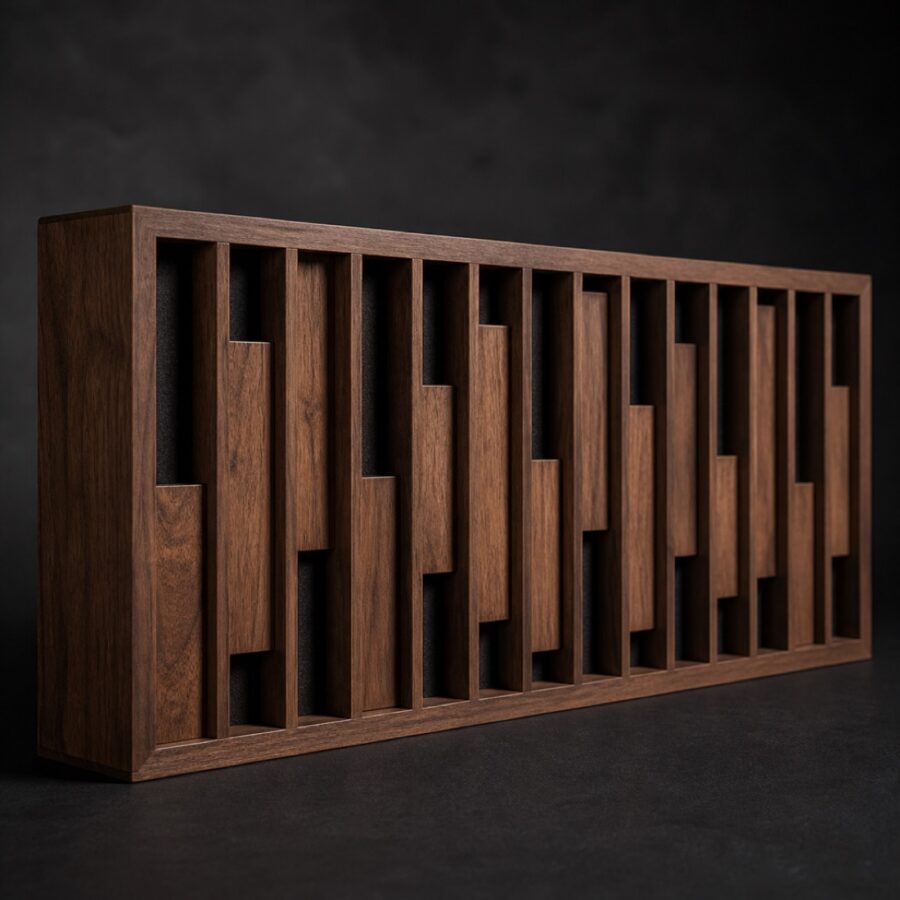

Quadra QRD-17 Diffuser acoustic product photograph
Diffusion Home Theater Recording Studio

Seventeen wells of mathematically derived depth, machined from solid walnut. Scatters from 380 Hz to well past 4 kHz without removing energy from the room.

Ask a Technical Question
Acoustic Specification
Model Reference QF-QRD17-1259
Absorption Rating (NRC) 0.15
Absorption Average (SAA) 0.14
Absorption Class Not applicable — diffusive device
Effective Frequency Range 380 Hz – 4.2 kHz
Nominal Dimensions 1190 × 595 mm
Depth 175 mm
Core Material Solid American black walnut
Facing / Frame Hand-oiled, open grain
Mounting Type Wall or ceiling, concealed cleat
Unit Weight 18.5 kg
Fire Rating Class B, intumescent finish optional
Standard Lead Time 6 weeks
Minimum Order 2 units

The design

The varying well depths are cut to a precise mathematical sequence that scatters sound evenly instead of bouncing it straight back. The result is a room that stays lively and open without the harsh slap of a bare wall.

Where to use it

  • The rear wall of a listening room or studio, behind the seating.
  • Behind the seating row in a home cinema to widen the sweet spot.
  • Opposite a hard bare wall to break up echo between the two.

Distance matters

A scattering panel needs a little space to do its work. If your rear wall is right behind your head, an absorbing panel is the better choice — and we will say so on the drawing.
