Diffusion

Skyline S2 Diffuser

A block-pattern wood panel that scatters sound evenly in every direction.

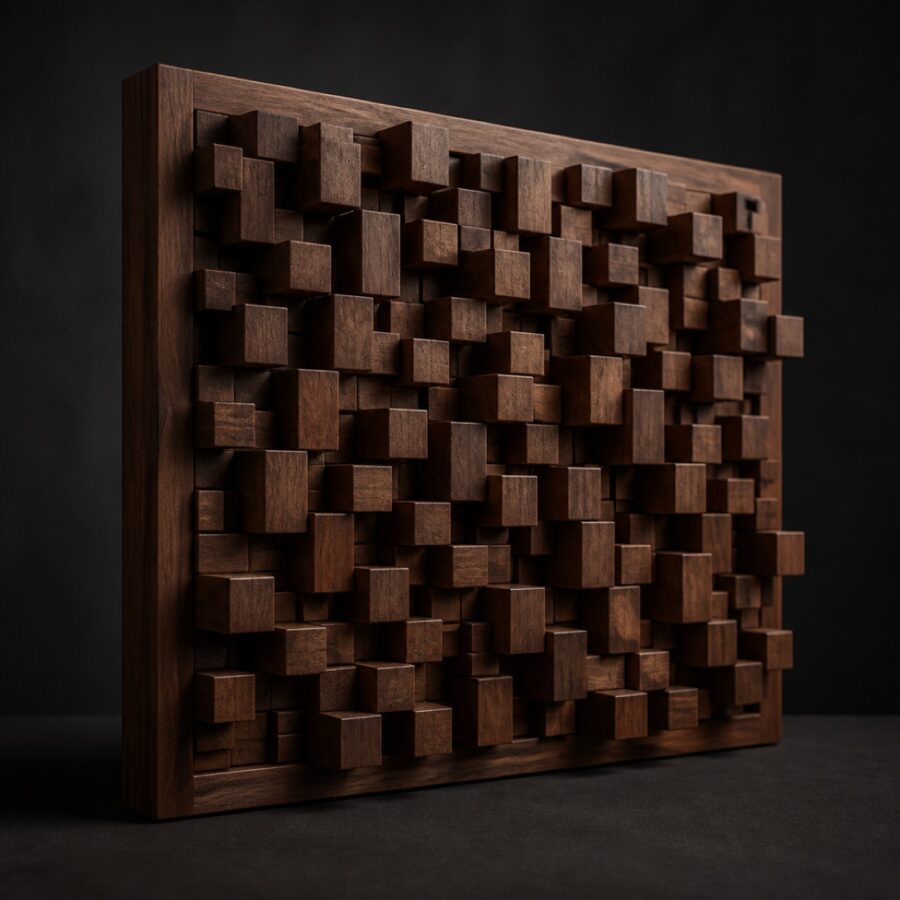

Skyline S2 Diffuser acoustic product photograph
Diffusion Home Theater Recording Studio

A 7 × 7 block array scattering in both the horizontal and vertical plane. Where a one-dimensional well diffuser only spreads energy sideways, the S2 spreads it everywhere.

Ask a Technical Question
Acoustic Specification
Model Reference QF-SKY2-595
Absorption Rating (NRC) 0.20
Absorption Average (SAA) 0.18
Absorption Class Not applicable — diffusive device
Effective Frequency Range 500 Hz – 6 kHz
Nominal Dimensions 595 × 595 mm
Depth 120 mm maximum
Core Material Walnut block array on birch substrate
Facing / Frame Hand-oiled, open grain
Mounting Type Wall or ceiling, concealed cleat
Unit Weight 11.2 kg
Fire Rating Class B, intumescent finish optional
Standard Lead Time 5 weeks
Minimum Order 4 units

Scattering in every direction

The varying block heights follow a pattern that spreads reflections evenly in all directions rather than in a single fan. In a cinema this is what keeps the back of the room feeling enveloping instead of echoey.

Construction

  • Forty-nine individually cut hardwood blocks bonded to a plywood carrier.
  • Modules tile seamlessly in any orientation without visibly repeating.
  • The cavity behind can be filled to add bass control where needed.

Pairing

The S2 is often installed in a chequerboard with our F40 wall panel — alternating absorb and scatter across a rear wall gives control without making the room feel dead.

Same Product Line

Often specified together

Product Inquiry

Quote Skyline S2 Diffuser

Tell us the quantity, the room it is going into and any finish requirements. Volume pricing, custom sizes and bespoke veneer are all available on request.
