Digital Presses

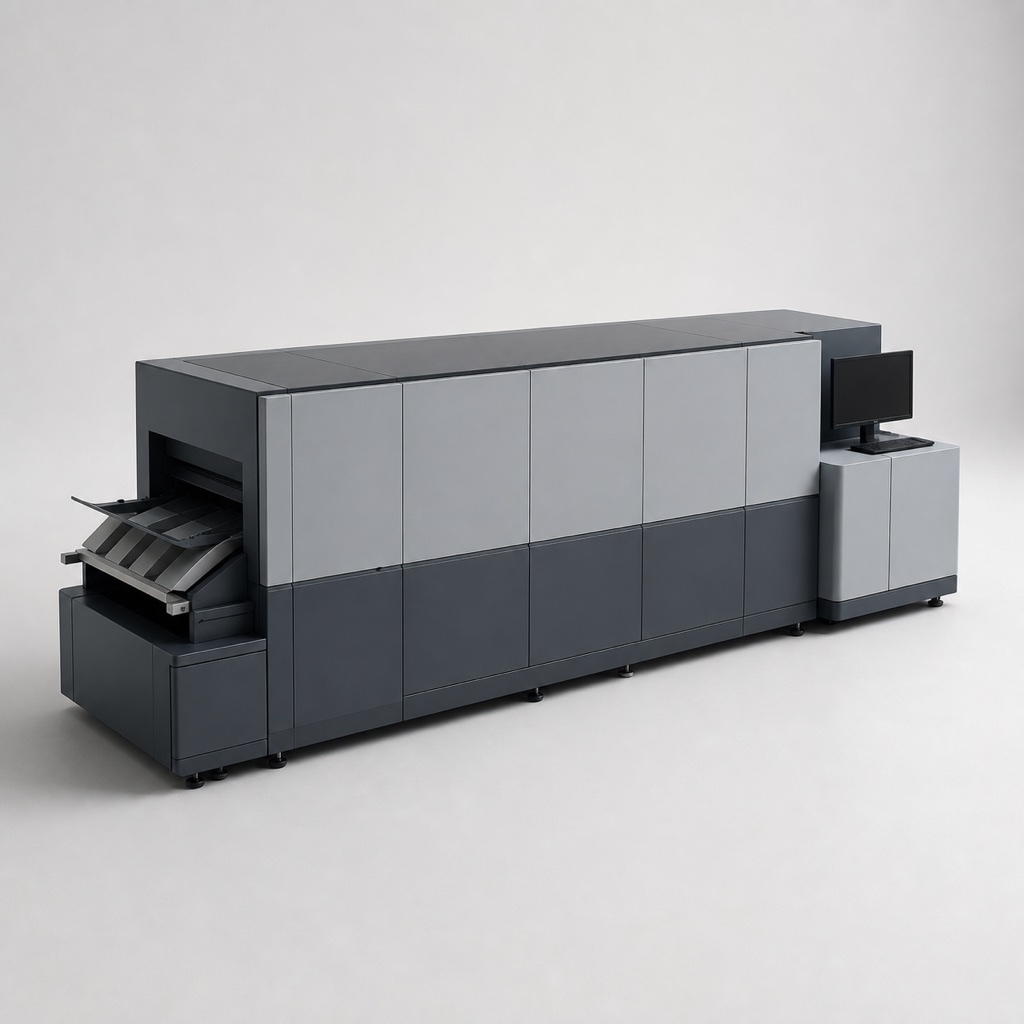

PL-D5200 Digital Sheet Press

No plates and no wash-up. Vacuum-belt transport with sheet-edge sensing keeps duplex work backing up.

  • Dimensions3,600 × 1,150 × 1,550 mm
  • Max Sheet Size364 × 660 mm
  • Rated SpeedUp to 5,200 sheets/hour (typical, job dependent)
  • Registration Accuracy±0.10 mm front-to-back (typical)

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 3,600 × 1,150 × 1,550 mm
Max Sheet Size 364 × 660 mm
Rated Speed Up to 5,200 sheets/hour (typical, job dependent)
Registration Accuracy ±0.10 mm front-to-back (typical)
Power Supply 400 V three-phase, 18 kW installed
Certification CE machinery directive design basis
Warranty 24 months

Overview

The PL-D5200 prints direct from file onto cut sheets, making it the machine of choice for short runs, versioned work and jobs that change every hour. There are no plates to make and no wash-up between jobs — changeover is a file swap and a stock check.

The paper path runs straight with vacuum-belt transport, handling coated and uncoated stocks plus common synthetics without operator gymnastics. Front-to-back register is maintained by sheet-edge sensing, so duplex work backs up reliably across the run.

Consumable units — imaging, fusing and feed rollers — are operator-replaceable and logged by the machine, which keeps service visits for real service rather than routine swaps.

Request a Quote

Tell us about your application and required quantity. Our engineers reply within one business day.
