Prepress & Platemaking

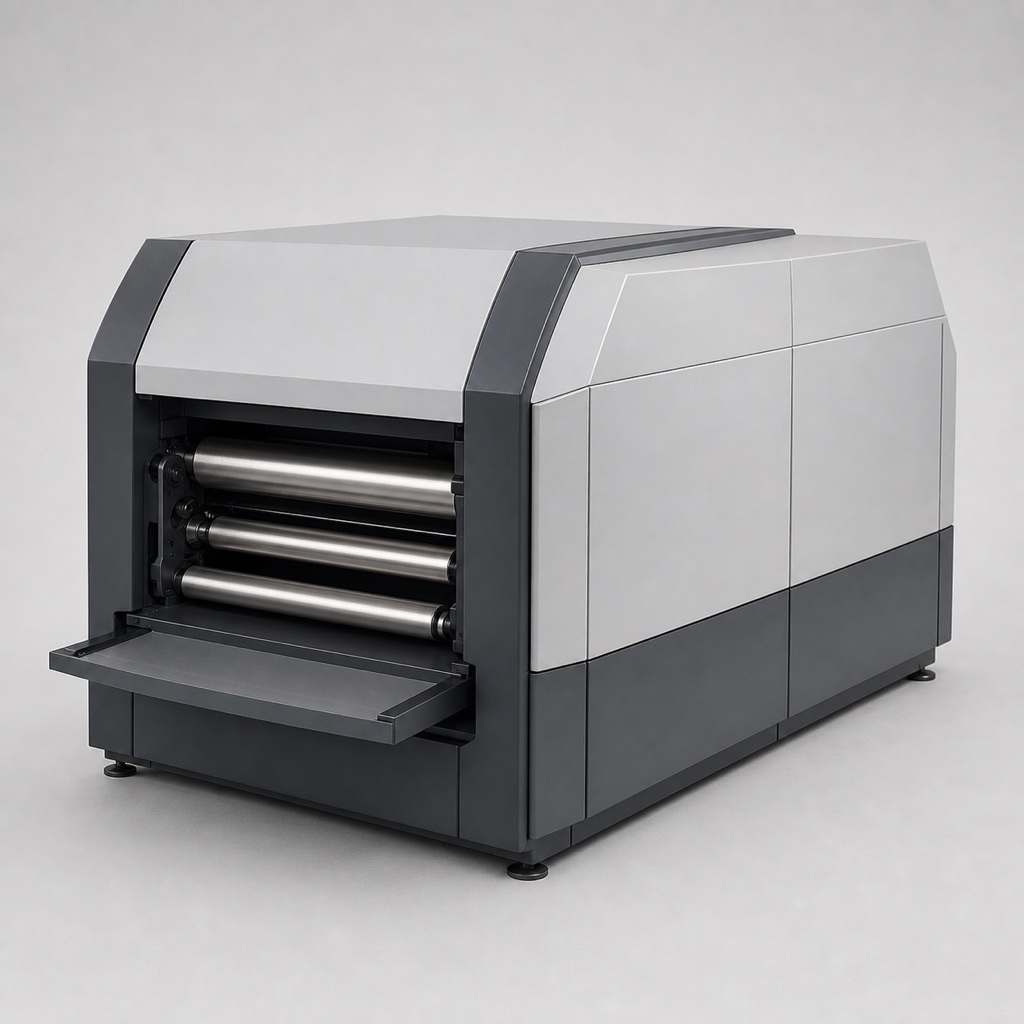

PL-P340 Plate Processor

Develops, rinses, gums and dries in one pass, dosing replenishment against plate area rather than time.

  • Dimensions1,850 × 1,200 × 1,050 mm
  • Max Sheet SizePlate width up to 900 mm
  • Rated SpeedProcessing 0.8–1.5 m/min (typical, plate dependent)
  • Registration AccuracyNot applicable — processing unit

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 1,850 × 1,200 × 1,050 mm
Max Sheet Size Plate width up to 900 mm
Rated Speed Processing 0.8–1.5 m/min (typical, plate dependent)
Registration Accuracy Not applicable — processing unit
Power Supply 400 V three-phase, 7 kW installed
Certification CE machinery directive design basis
Warranty 24 months

Overview

The PL-P340 develops, rinses, gums and dries imaged plates in one pass, delivering them press-ready at the exit tray. Developer temperature and dwell time hold to setpoint, and replenishment doses against plate area rather than time — the two disciplines that keep plate quality level from Monday to Friday.

Roller pairs lift out without tools for the weekly clean, and the chemistry section drains through labelled valves to sealed containers. A plate-counting display schedules bath changes on work done, not on guesswork.

Request a Quote

Tell us about your application and required quantity. Our engineers reply within one business day.
