Parts & Consumables

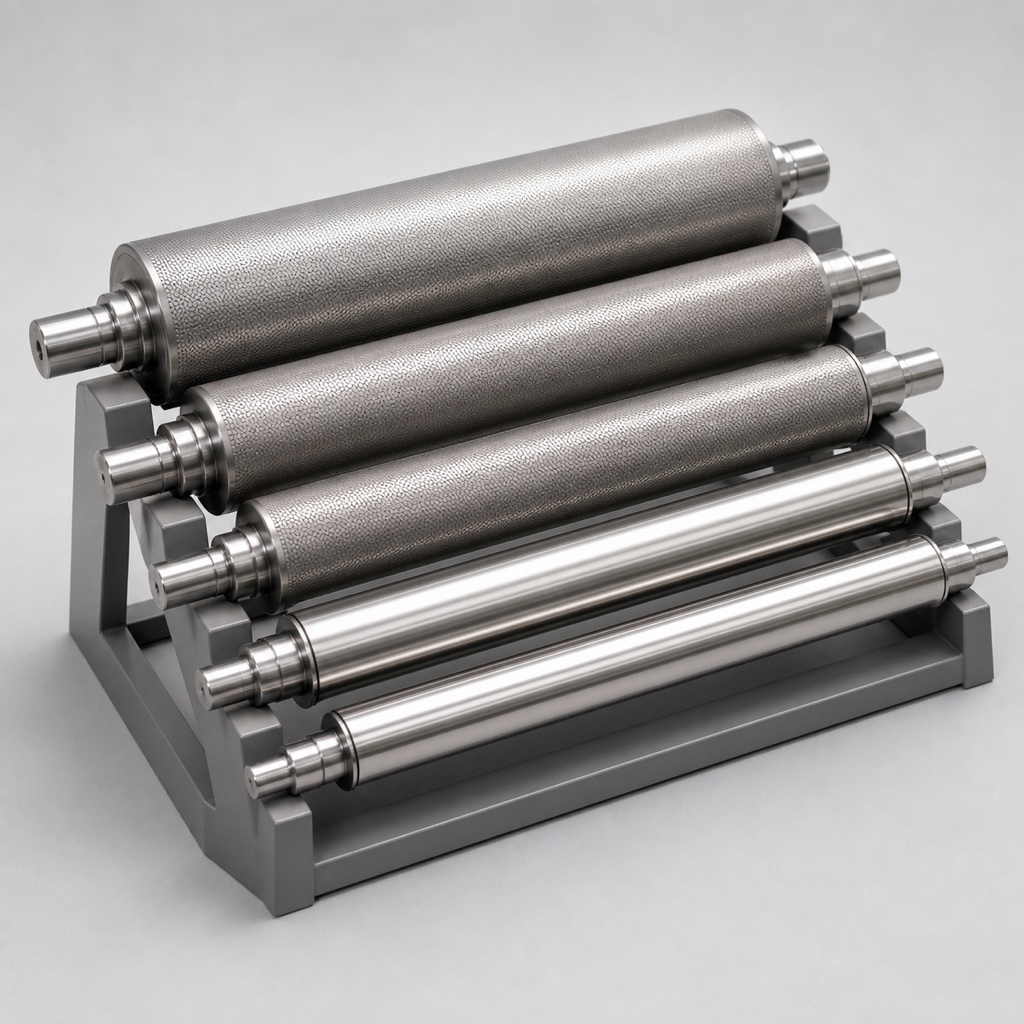

PL-R360 Roller & Anilox Set

Rubber rollers ground to a specified durometer and crown; ceramic anilox sleeves with volume readings on the label.

  • DimensionsRoller lengths 600–1,200 mm per model
  • Max Sheet SizeMatched to press model at order
  • Rated SpeedNot applicable — replacement parts
  • Registration AccuracyRollers ground to ±0.02 mm TIR (typical)

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions Roller lengths 600–1,200 mm per model
Max Sheet Size Matched to press model at order
Rated Speed Not applicable — replacement parts
Registration Accuracy Rollers ground to ±0.02 mm TIR (typical)
Power Supply Not applicable
Certification Manufactured to original equipment specification
Warranty 12 months against manufacturing defects

Overview

The PL-R360 set supplies the rotating consumables of the print unit: rubber ink and dampening rollers ground to specified durometer and crown, and ceramic anilox sleeves engraved to the cell count the job mix calls for. Each part ships with its measurement certificate.

Rollers arrive with journals fitted and protective wrap that peels at the machine, not in the store room. Anilox sleeves include volume readings taken after engraving — the number that actually predicts ink film, recorded before the sleeve ever meets ink.

Request a Quote

Tell us about your application and required quantity. Our engineers reply within one business day.
