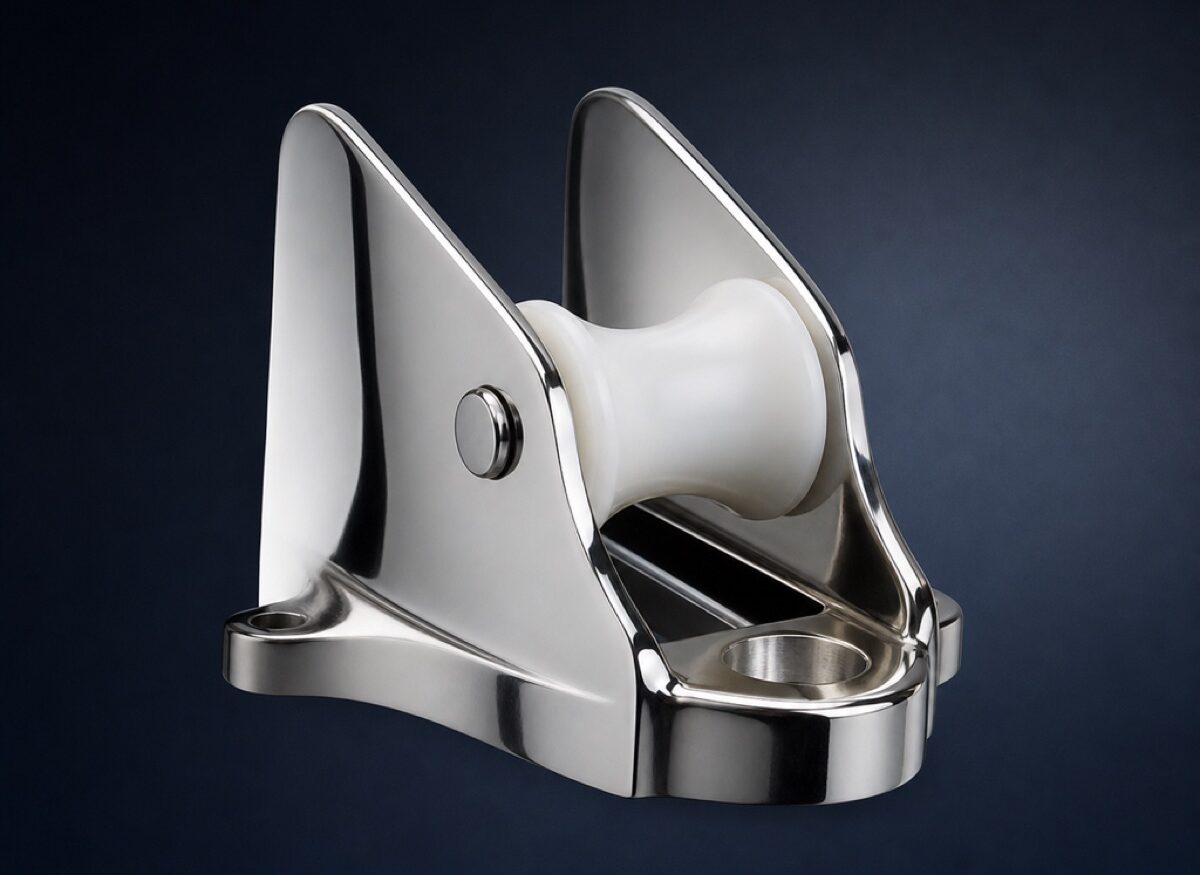

Cast Bow Anchor Roller
Sized for anchors up to 25 kg on chain up to 10 mm. The retaining pin stops the rode jumping the roller when the boat pitches at anchor, which is when a bow roller earns its keep.
- 5 mm side plates rather than the 3 mm common at this price, for pitching loads at anchor.
- Removable chain retaining pin keeps the rode in the roller in a seaway.
- Cast nylon wheel machined after moulding for a true running surface.
- Deck plate profile designed to spread load onto a reinforced pad, not a single laminate.
Detailed documentation and product support are available on request for every catalogue item.
Product Details
Fitted at the stemhead on cruising yachts from about 34 to 48 feet, depending on ground tackle. If you anchor routinely in swell, the retaining pin is not optional.
The fixing pattern assumes a solid or properly cored bow pad. On a cored deck, over-drill and fill the core with thickened epoxy before final drilling – the roller will otherwise crush the core and start leaking within a season.
