Drilling & CNC

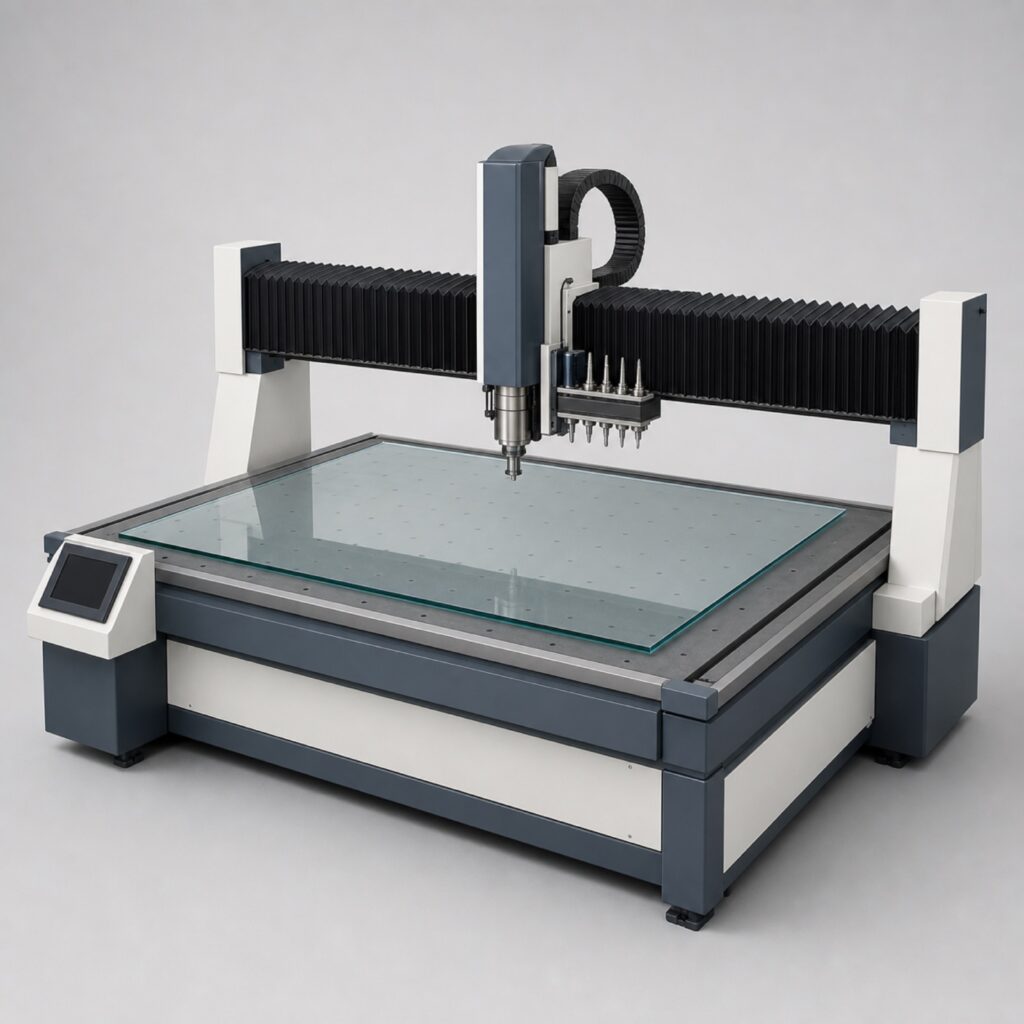

VG-MC2513 CNC Machining Center

Three-axis CNC center for shapes, cutouts, notches and polished internal edges.

  • Dimensions5,900 × 3,300 × 2,500 mm (typical installed)
  • Max Glass Size2,500 × 1,300 mm
  • Glass Thickness Range4–25 mm
  • Power Supply400 V three-phase, 15 kW (typical)

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 5,900 × 3,300 × 2,500 mm (typical installed)
Max Glass Size 2,500 × 1,300 mm
Glass Thickness Range 4–25 mm
Power Supply 400 V three-phase, 15 kW (typical)
Processing Speed Spindle to 12,000 rpm; rapids 60 m/min (typical)
Certification CE machinery directive design basis
Warranty 24 months

Overview

The VG-MC2513 machines what flat lines cannot: hinge cutouts, tap holes, radiused corners, shaped tops and polished internal edges, all in one clamping on a vacuum table. The tool changer carries diamond routers, drills, countersinks and polishing wheels, and the control compensates tool wear per tool, per job.

Vacuum pods position from a projected layout, so setup for a new shape is placing pods on lit marks rather than measuring from edges. The enclosure keeps coolant mist inside the machine, and a chip-and-slurry conveyor discharges into a standard workshop bin.

For shower enclosures, balustrades and furniture work, this is the machine that removes the outsourcing queue.
