Fiber Laser Cutters

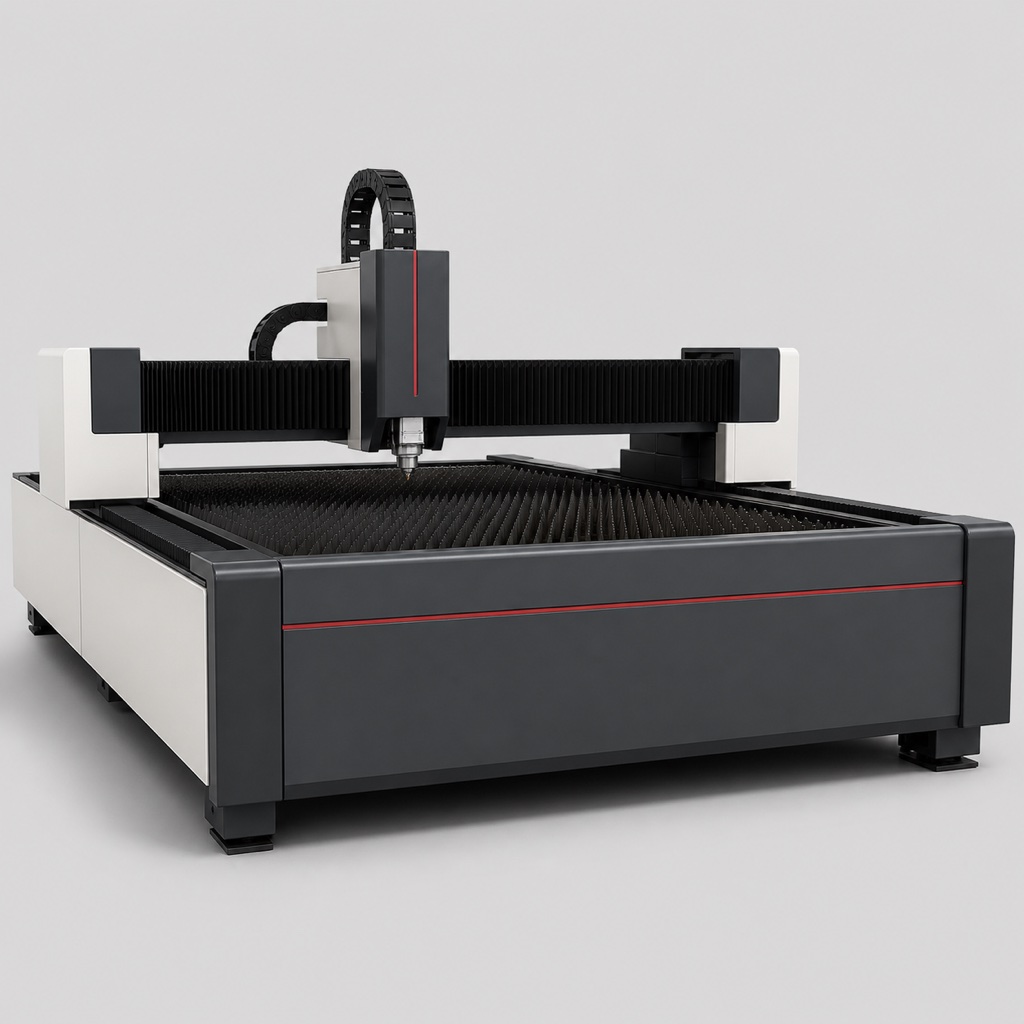

LC-F1530 Open-Bed Fiber Laser Cutter

Slat table open on three sides, so plate arrives by crane instead of through a cabin door.

  • Dimensions7,600 × 2,600 × 1,900 mm
  • Working Area3,000 × 1,500 mm
  • Laser PowerFiber source options, sized to application
  • Positioning Accuracy±0.04 mm/m, ±0.02 mm repeatability

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 7,600 × 2,600 × 1,900 mm
Working Area 3,000 × 1,500 mm
Laser Power Fiber source options, sized to application
Positioning Accuracy ±0.04 mm/m, ±0.02 mm repeatability
Power Supply 380–480 V, 3-phase
Certification CE machinery directive design basis; guarding concept per installation
Warranty 24 months

Overview

The LC-F1530 puts fiber cutting into workshops where floor access matters more than full enclosure: an open slat table with a travelling gantry, guarded to the applicable laser safety concept with interlocked light screens on the operator side. Loading by crane or forklift is straightforward from three sides.

The same cutting head and control family as the cabin machines means parameter sets transfer between models, and operators move between machines without retraining. Assist gas switching between nitrogen, oxygen and air is program-controlled.

Cutting results depend on material, thickness and gas selection; acceptance cutting with your samples is part of every quotation.
