A door sensor gates the source, and the rotary axis option handles cylindrical parts.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 800 × 750 × 1,650 mm floor-standing |
|---|---|
| Working Area | Marking field options 110–300 mm square; rotary axis option |
| Laser Power | Fiber marking source options, application dependent |
| Positioning Accuracy | ±0.01 mm galvo repeatability |
| Power Supply | 220–240 V, 1-phase |
| Certification | CE design basis; interlocked enclosure |
| Warranty | 24 months |

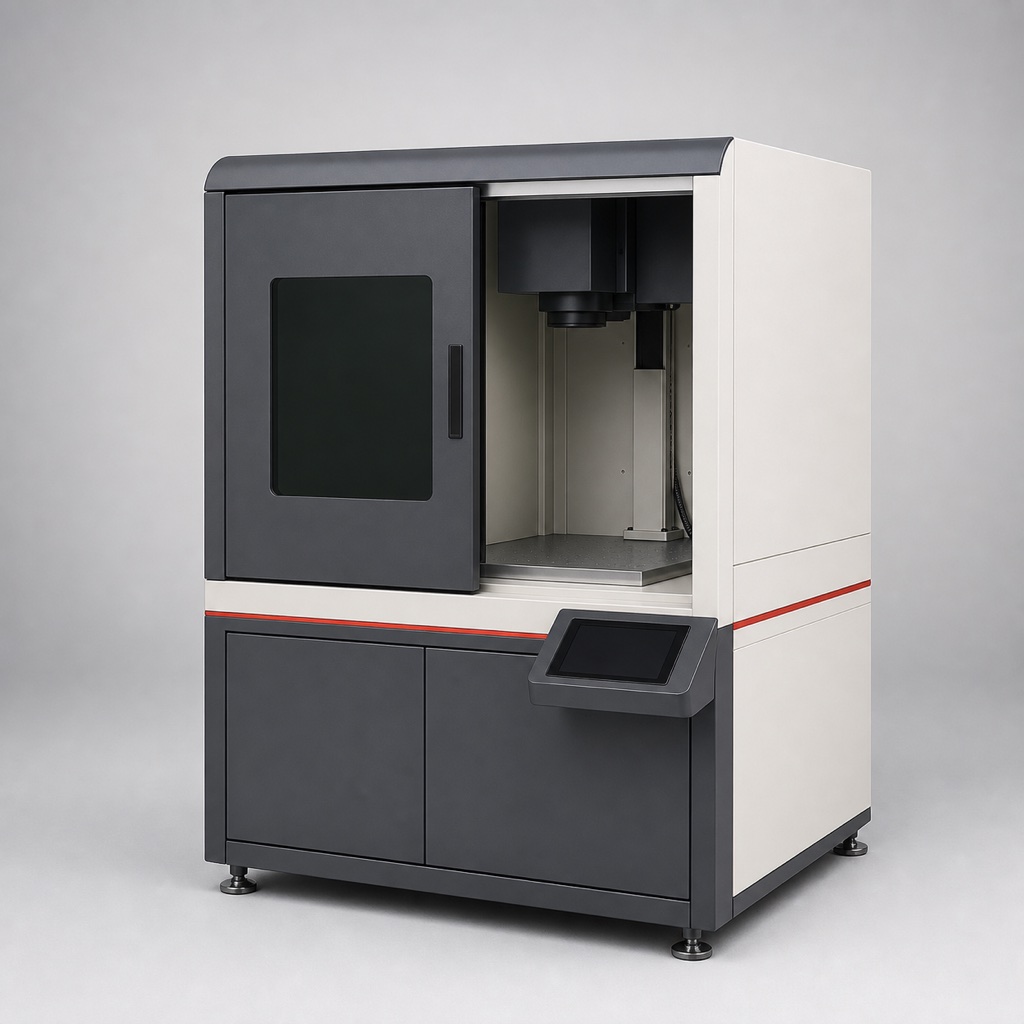

The LC-M50E closes the marking process into an interlocked cabinet with a sliding door — suitable for open production floors without dedicated laser areas. The rotary-axis option marks cylindrical parts, and the door sensor gates the source so the beam only fires closed.
Fixtures locate on a grid plate, job recall pairs the program with the fixture position, and the footswitch or line signal starts the cycle. Integrated extraction with filter cartridge keeps marking fume out of the room air.
The galvo head marks serials and scales without moving the part or the fixture.
