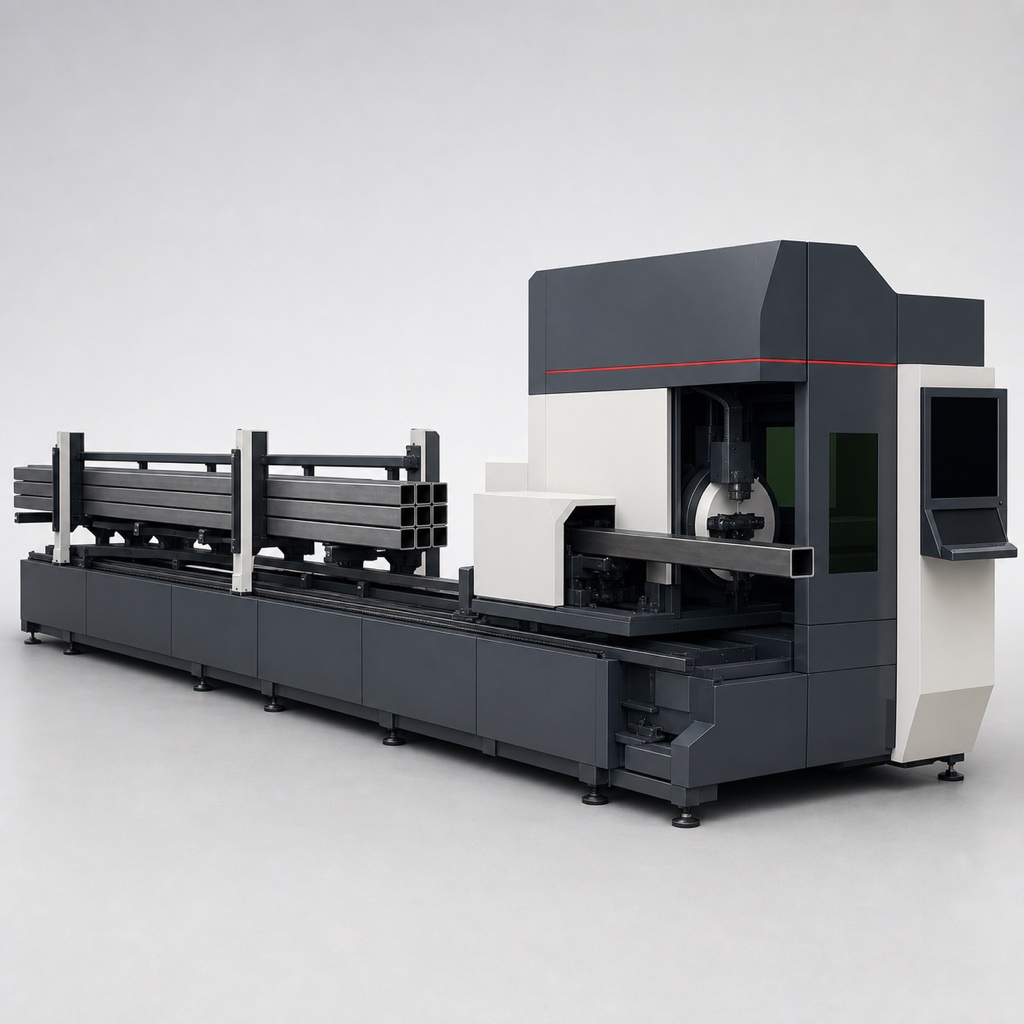

LC-T9035 Heavy Tube Cutting System

A full bundle goes on the rack; copes and weld preps come off ready to fit.

  • Dimensions13,500 × 3,600 × 2,400 mm with loading rack
  • Working AreaStock up to 9,000 mm; sections within Ø30–350 mm envelope
  • Laser PowerFiber source options, sized to application
  • Positioning Accuracy±0.05 mm/m linear, ±0.03° rotary

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 13,500 × 3,600 × 2,400 mm with loading rack
Working Area Stock up to 9,000 mm; sections within Ø30–350 mm envelope
Laser Power Fiber source options, sized to application
Positioning Accuracy ±0.05 mm/m linear, ±0.03° rotary
Power Supply 380–480 V, 3-phase
Certification CE machinery directive design basis
Warranty 24 months

Overview

The LC-T9035 adds automatic bundle loading to tube cutting: a rack takes a full bundle of stock, singulates one length at a time onto the feed chain, and keeps the machine cutting through a shift without an operator standing by. Finished parts and offcuts sort to separate stations at discharge.

The heavier chuck set and driven supports carry structural sections, and the control plans part nesting along each stock length to keep remnant short. For fabricators feeding welding cells, it turns tube prep from a bottleneck into a buffer.
