MS-E28 · Education

MS-E28 Classroom Module

A single teaching space sized to a 30-pupil standard classroom, delivered with furniture in place.

51.2m²Floor area

2.95mClear height

17.4 tShip weight

3Max storeys

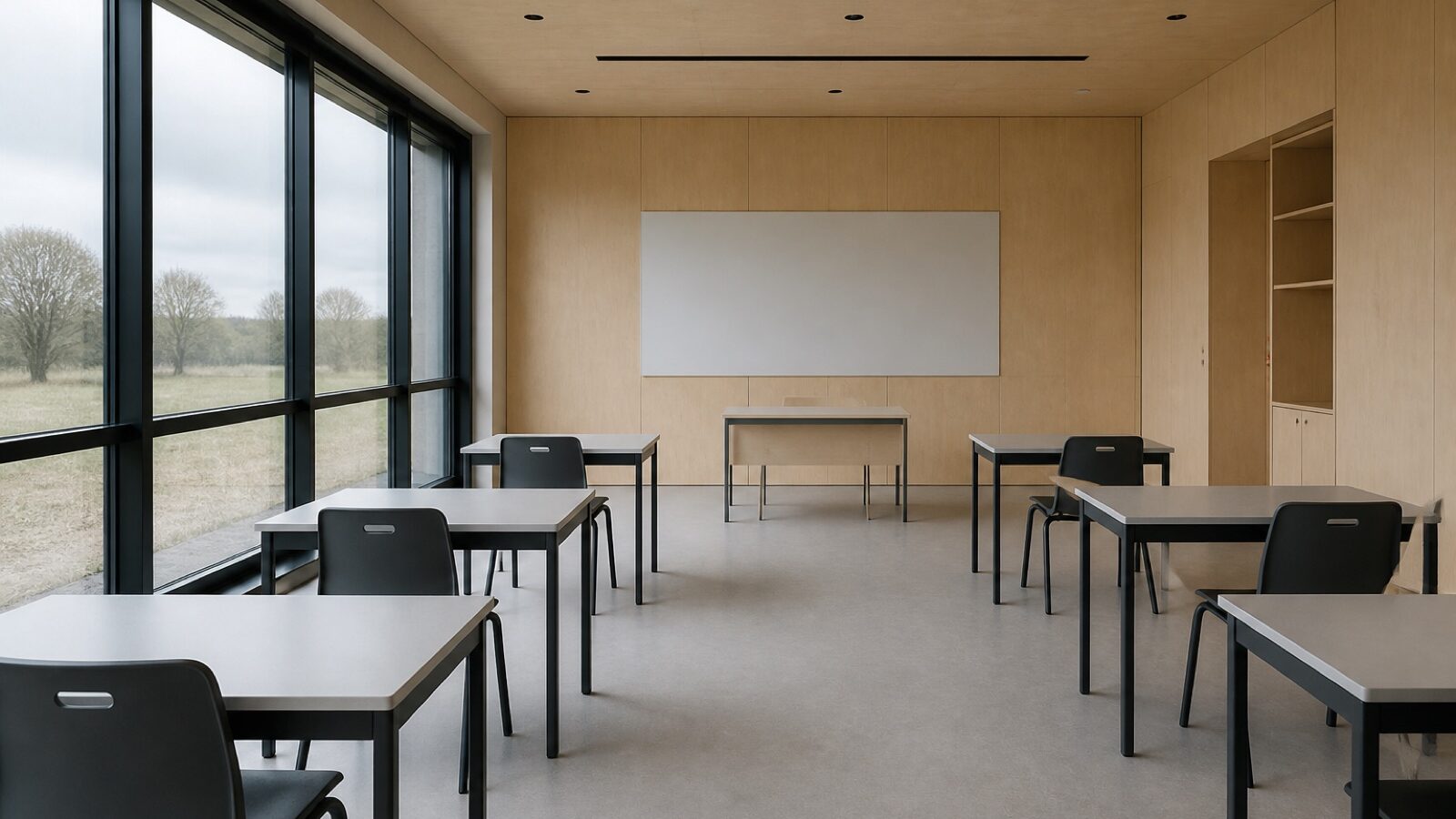

MS-E28 Classroom Module volumetric module unit

Specification

Built to a fixed, certified envelope.

Schools are the hardest programme we work to, because the site is only ours for six weeks in the summer. The MS-E28 is designed backwards from that constraint: everything that can be done in the plant is done in the plant, including the furniture, so the site scope is foundations, lifts, stitching and commissioning.

01 2.95 m clear height meets teaching space daylight guidance
02 Cross-ventilation openings on two elevations
03 Impact-resistant lining to 1.5 m on all walls
04 Integrated cloakroom recess and teacher storage
05 Furniture, boards and blinds installed in the plant

Production record

Unit codeMS-E28
External L × W × H12.20 × 4.20 × 3.60 m
Internal clear height2.95 m
Floor area51.2 m²
Shipping weight17.4 t
Envelope U-value0.14 W/m²K
Fire ratingREI 60
Acoustic (party wall)55 dB Rw
Max stack3 storeys
Design occupancy30 persons
Factory lead time10 weeks
TransportExtendable trailer, over-width permit and escort
Structural systemHybrid steel frame with CLT floor cassette
Typical usePrimary and secondary classrooms, training rooms, bulge cohorts

Logistics

How this unit reaches your site

Transport envelope — MS-E28 Classroom Module

Shipping section 4.20 m wide × 3.60 m high, travelling at 4.75 m over the carriageway.

Unit study

Over-width permit required4.20 m shipping width against a 2.60 m legal limit — escort vehicle and daylight running.

Route survey required4.75 m on a 1.15 m deck against a 4.15 m legal travel height.

Within standard axle loading17.4 t shipping weight against a 24.0 t legal payload.

Fits a standard 13.6 m deck12.20 m unit length on a 13.60 m deck.

Enquiry

Price MS-E28 Classroom Module for your site.

Tell us how many units, the site address and the target handover date. We come back with a unit schedule, a transport plan, a crane study and a price band.
