Microchannel V-coils with EC axial fans, rated to hold capacity at 43 °C ambient and no cooling tower to build.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 3,960 × 2,240 × 2,460 mm |
|---|---|
| Cooling Capacity | 450 kW nominal |
| Airflow | 145,000 m³/h condenser air |
| Power | 400 V / 3 ph / 50 Hz |
| Noise Level | 72 dB(A) at 10 m |
| Certification | CE, EN 14511 test basis |
| Warranty | 5 years compressor, 2 years parts |

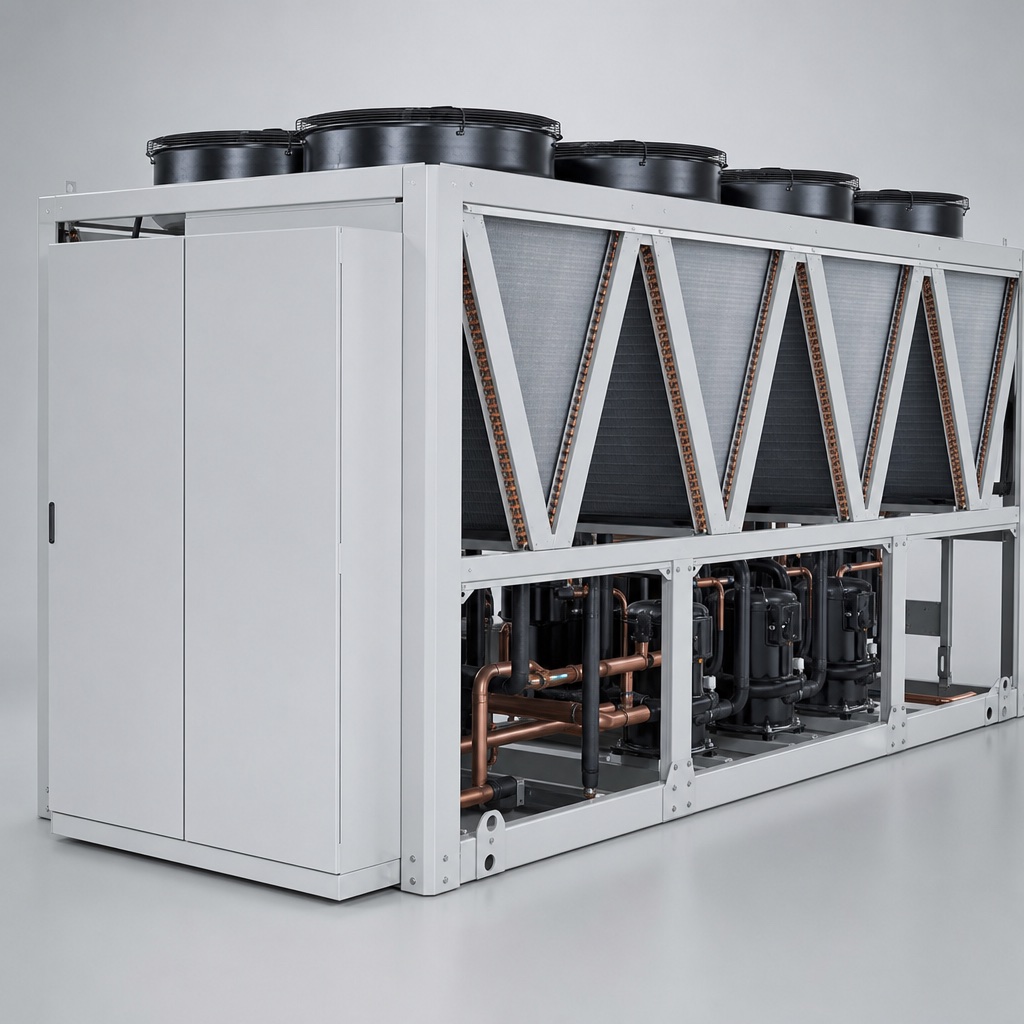

The TV-C450 suits sites without space or appetite for a cooling tower: microchannel V-coils reject heat straight to ambient, EC axial fans ramp with condensing pressure, and the hydraulic module — pump, expansion vessel, strainer — is built in under the same enclosure.
Scroll compressors run in two circuits with capacity staging that keeps chilled-water temperature steady through swing seasons. Coil guards and a powder-coated frame stand up to open-roof installation.
Two semi-hermetic screws on separate circuits — either one alone still carries the building…
