Chillers

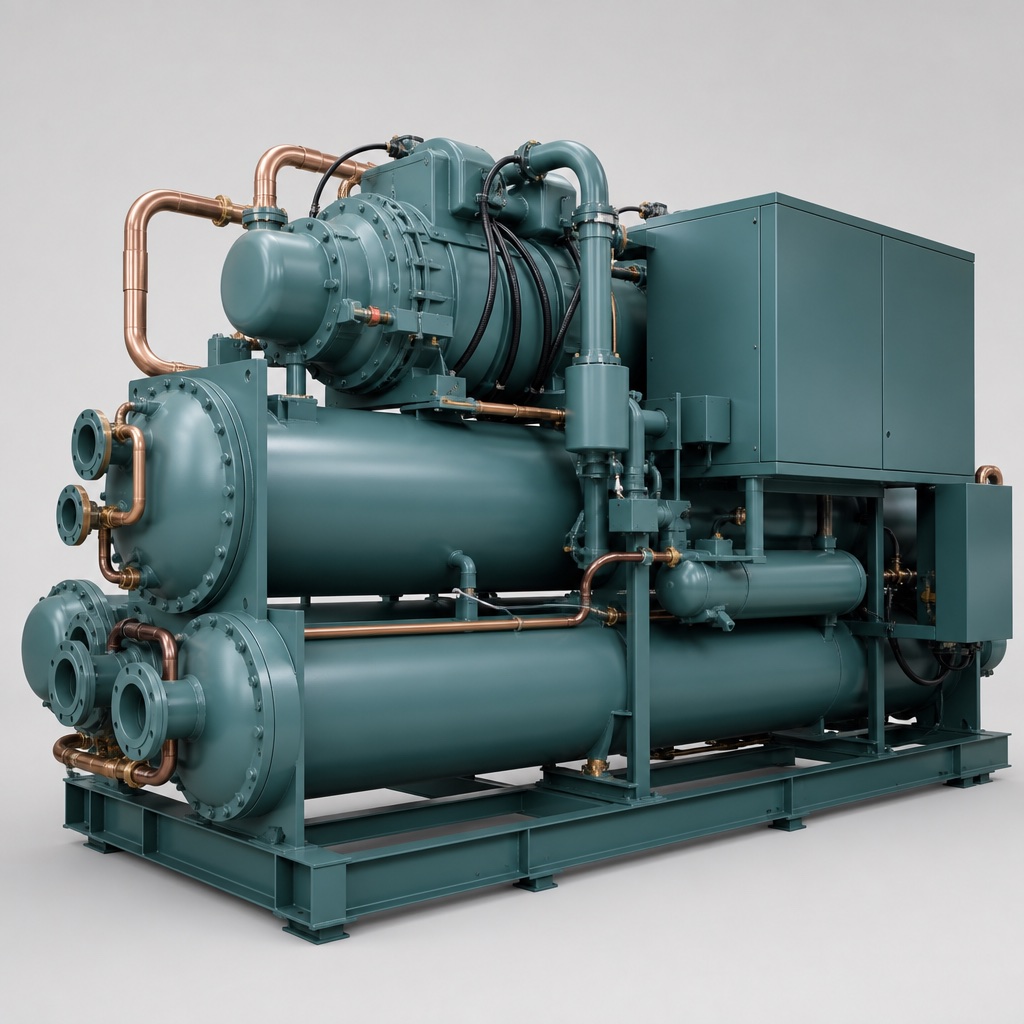

TV-C900 Water-Cooled Screw Chiller

Two semi-hermetic screws on separate circuits — either one alone still carries the building at part load.

  • Dimensions4,180 × 1,760 × 2,050 mm
  • Cooling Capacity900 kW nominal
  • AirflowWater-side: 155 m³/h chilled water
  • Power400 V / 3 ph / 50 Hz

Response within one business day. Include duty point or application details for a faster match.

Technical Specifications

Dimensions 4,180 × 1,760 × 2,050 mm
Cooling Capacity 900 kW nominal
Airflow Water-side: 155 m³/h chilled water
Power 400 V / 3 ph / 50 Hz
Noise Level 78 dB(A) at 1 m
Certification CE, EN 14511 test basis
Warranty 5 years compressor, 2 years parts

Overview

The TV-C900 anchors a central plant: twin semi-hermetic screw compressors on independent refrigerant circuits, flooded-type evaporator, and a skid frame that forklifts into the plant room in one piece. Either circuit carries the building alone at part load, so maintenance never means a warm lobby.

Stepless slide-valve modulation lets the machine track chilled-water setpoint tightly across the season. Every chiller runs a witnessed performance test on our own rig before dispatch, and the log ships with the unit.

Request a Quote

Tell us about your application and required quantity. Our engineers reply within one business day.
