Low enough for a 1,120 mm height limit, and it runs a direct-drive plug fan so there is no belt to tension.
Response within one business day. Include duty point or application details for a faster match.
| Dimensions | 2,420 × 1,760 × 1,120 mm |
|---|---|
| Cooling Capacity | 35 kW nominal |
| Airflow | 6,000 m³/h |
| Power | 400 V / 3 ph / 50-60 Hz |
| Noise Level | 64 dB(A) at 10 m |
| Certification | CE, EN 14511 test basis |
| Warranty | 5 years compressor, 2 years parts |

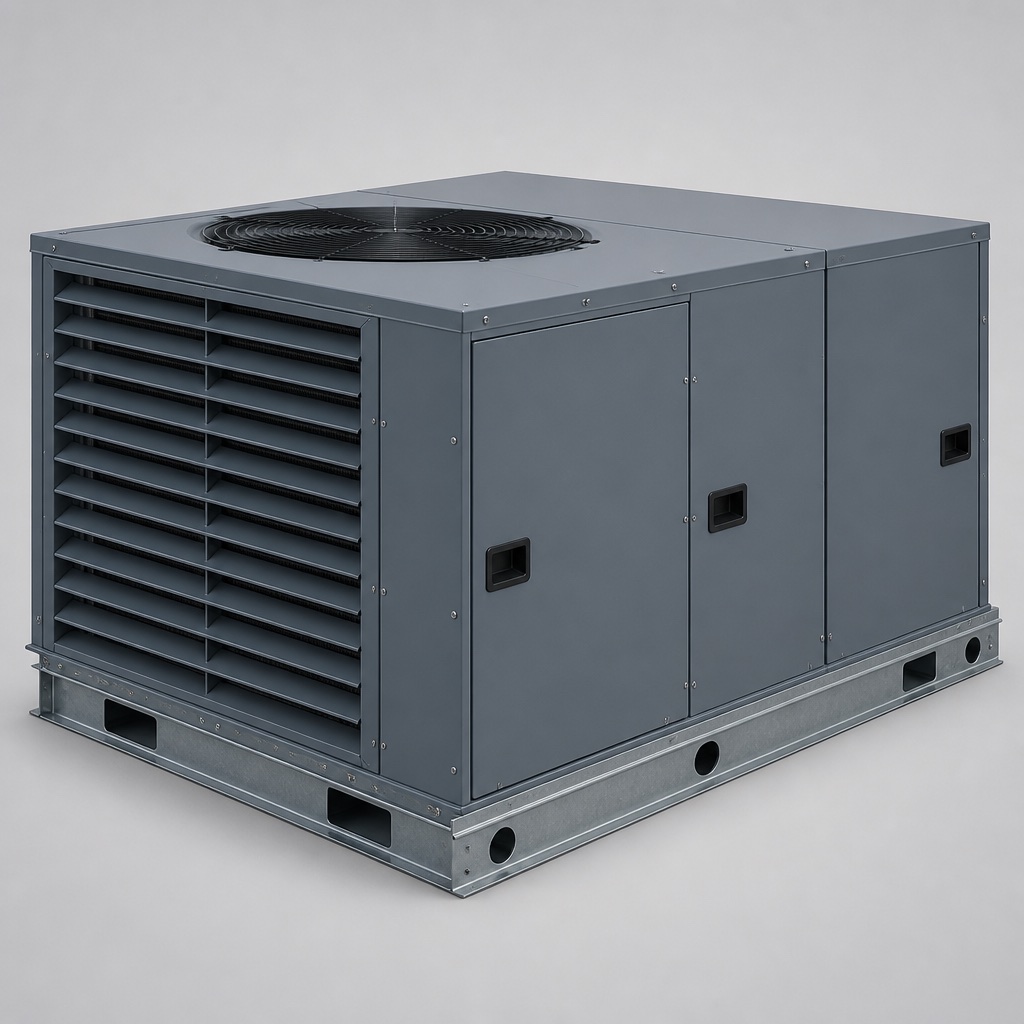

The TV-R120 brings packaged rooftop convenience to buildings where crane budgets and sight lines are tight: a low-profile cabinet, side-intake louvers and a curb-mounted base frame that seats on the same rail family as its larger siblings.
The refrigerant circuit uses a single tandem scroll set with a wide modulation band, and the supply fan is a direct-drive plug fan — no belts to tension, no pulleys to align. Panels lift off with quarter-turn fasteners for one-person service.
Tandem scrolls, 11,500 m³/h, and a hinged service side that faces the walkway instead…
