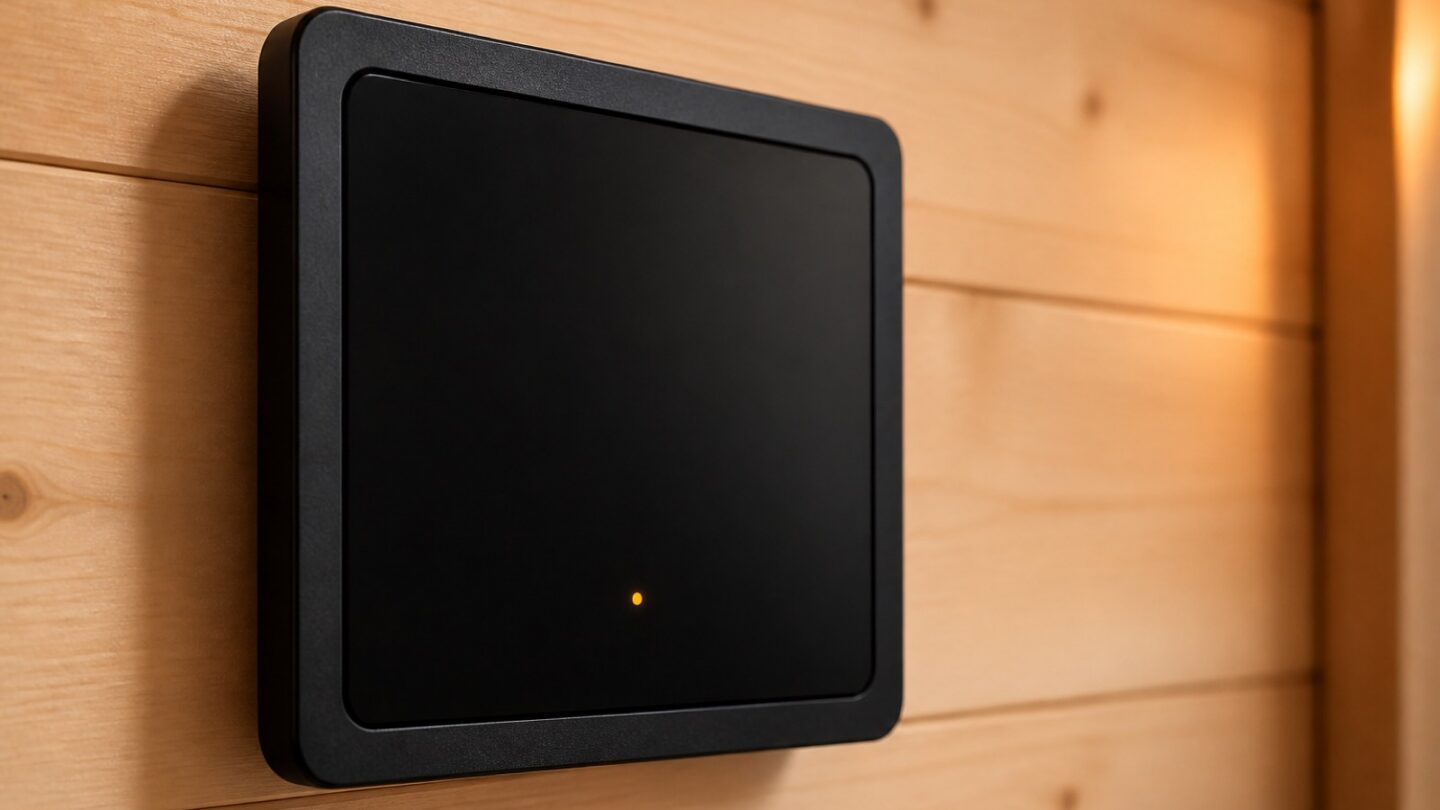

Loyly Digital Control Panel DC-1

A flush-mounted capacitive controller for electric heaters and steam generators, with weekly scheduling and a locked operator mode.

Model NS-DC1
Dimensions 148 × 148 × 22 mm
Capacity Drives up to 2 heaters or 1 generator
Timber Not applicable
Heater Output Switching capacity 3 × 16 A
Temperature Range Set point 40 – 110 °C
Humidity Range Set point 10 – 100 % RH
Power Supply 230 V / 1 ph control supply
Energy Use 2.4 W standby
Lead Time 3 weeks ex works
Send Full Specification
Description

Build detail and engineering notes

The DC-1 is mounted outside the cabin, in the corridor or at the reception desk, and drives the heater through a contactor box.

Its most useful feature in commercial work is the operator lock: staff set an allowable band — say 78 to 88 °C — and guests can move freely within it, but cannot push the room to 105 °C on a whim.

Key Features

What is included as standard

Capacitive glass front No mechanical buttons to fail in a humid corridor.
Weekly scheduler Seven-day heat-up programme with a holiday override.
Operator lock Guests adjust within a range the operator sets; the range itself is PIN-protected.
Modbus RTU Reports set point, actual temperature, duty hours and fault state.
Product Inquiry

Loyly Digital Control Panel DC-1

Send us your room dimensions, ceiling height, intended capacity and power supply. Our technical team returns a specification, a layout drawing and a firm price — usually within two working days.

Request a Quotation

This inquiry is linked to the product above. Add your dimensions and quantity and we will price it.
