Outdoor Sauna Cabins
Kolv Cube Sauna Pod C220
A charred-timber cube pod with a full-height glazed front, designed for courtyards, rooftops and boutique hotel terraces.
- Capacity 4 bathers
- Heater Output 6.0 kW electric

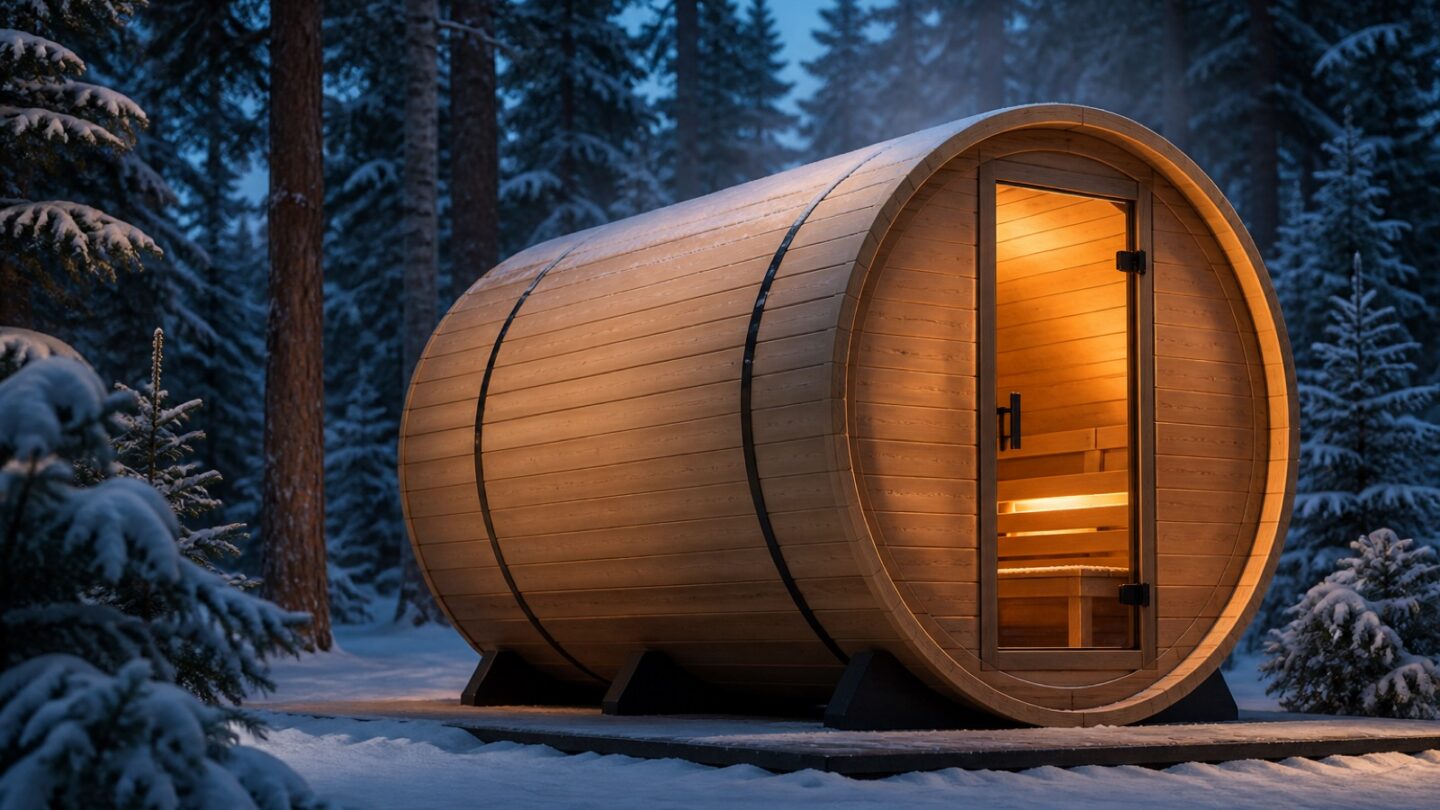

Nordvik Barrel Sauna R240
A four-to-six person barrel cabin in thermo-treated aspen with a blackened steel band set, sized for gardens and lakeside decks.
Model
NS-R240
Dimensions
Ø 2,100 × 2,400 mm
Capacity
4 – 6 bathers
Timber
Thermo-aspen interior / Nordic spruce shell
Heater Output
8.0 kW electric
Temperature Range
70 – 95 °C
Humidity Range
10 – 25 % RH
Power Supply
400 V / 3 ph / 16 A
Energy Use
≈ 5.6 kWh per session
Lead Time
6 weeks ex works
Description
Build detail and engineering notes
The R240 is our most-specified garden cabin. The barrel geometry puts the bather closer to the stone bed than a rectangular room of the same volume, so it reaches bathing temperature in roughly thirty-five minutes and holds it with a smaller heater.
The shell is machined from 42 mm Nordic spruce staves, tongued and grooved on a four-sided moulder so the joint stays tight through seasonal movement. The interior lining, benches and backrests are thermo-treated aspen, which stays comfortable against bare skin even at 95 °C.
Site requirements
The cabin sits on four pressure-treated cradles and needs a level bearing surface — a concrete pad, paving slabs or a timber deck rated for 450 kg per cradle. Electrical supply terminates at a junction box on the rear wall; the heater circuit must be protected by a 16 A three-phase breaker with a 30 mA RCD.
Bench Layout
Plan view at published dimensions
Drawn from this model’s own footprint, with 600 mm of bench allowed per bather and the heater and door swing kept clear.
Bench Bather position Heater Door swing
Key Features
What is included as standard
Self-shedding shell
The curved profile drains rain and snow without a separate roof covering.
Stainless band set
Four adjustable bands in 316 stainless steel, powder-coated matte black.
Toughened glass door
8 mm clear glass in a thermo-aspen frame with a magnetic catch.
Pre-wired heater bay
The heater, guard rail and sensor arrive fitted and tested.
Related
Often specified together
Outdoor Sauna Cabins
Fjord Panorama Glass Cabin P300
A six-to-eight person cabin with a full panoramic glass wall, specified where the view is as much a part of the ritual…
- Capacity 6 – 8 bathers
- Heater Output 9.0 kW electric
Indoor Sauna Rooms
Alva Modular Indoor Sauna M180
A cassette-built indoor room that drops into an existing shell — bathrooms, basements and apartment wellness corners.
- Capacity 2 – 4 bathers
- Heater Output 4.5 kW electric
Product Inquiry
Nordvik Barrel Sauna R240
Send us your room dimensions, ceiling height, intended capacity and power supply. Our technical team returns a specification, a layout drawing and a firm price — usually within two working days.
- Direct Line +1 555 018 4420
- Technical Sales sales@example.com
- Lead Time 6 weeks ex works
Request a Quotation
This inquiry is linked to the product above. Add your dimensions and quantity and we will price it.
