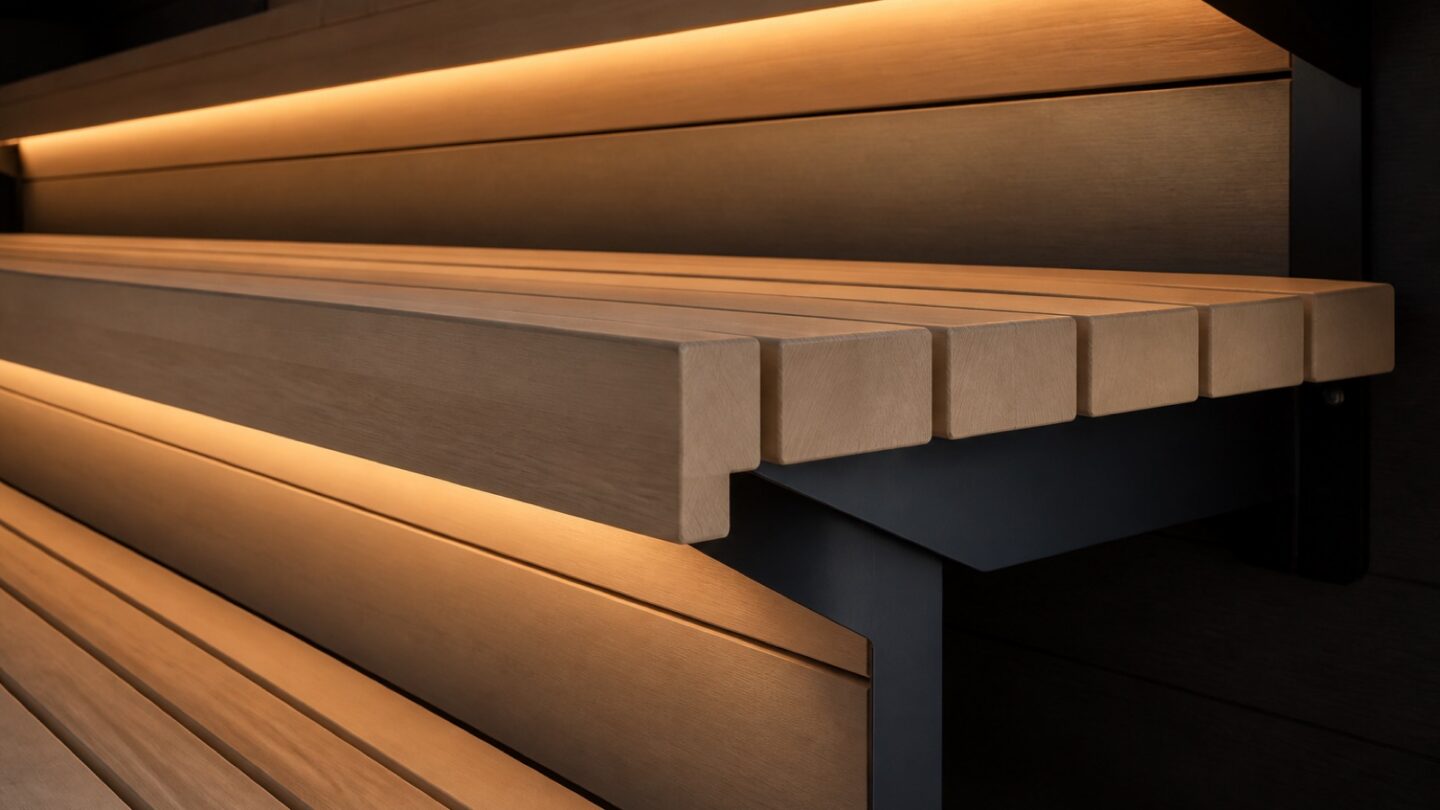

Thermo-Aspen Bench System B-Series

A modular tiered bench system in thermally modified aspen with concealed steel brackets and an optional lit shadow gap.

Model NS-B-Series
Dimensions Modules 600 / 900 / 1,200 / 1,800 mm
Capacity 1 – 3 bathers per module
Timber Thermo-treated aspen, 28 mm slats
Heater Output Not applicable
Temperature Range Rated to 110 °C continuous
Humidity Range Suitable to 40 % RH
Power Supply 24 V DC for optional lighting
Energy Use 4.8 W per lit metre
Lead Time 4 weeks ex works
Send Full Specification
Description

Build detail and engineering notes

Benches take more punishment than any other part of a sauna and they are the part clients notice when it goes wrong. The B-Series is built from 28 mm thermo-aspen slats on concealed powder-coated carriers.

Every tier lifts out on locating pins so the floor underneath can actually be cleaned — a detail that separates a commercial installation from a domestic one.

Key Features

What is included as standard

Concealed brackets Powder-coated steel carriers hidden behind the front apron.
Liftable tops Every tier lifts out on locating pins for cleaning underneath.
12 mm shadow gaps Slat spacing sized so water drains but fingers are never pinched.
Optional 24 V lighting A warm 2,400 K strip washing down from under the top tier.
Product Inquiry

Thermo-Aspen Bench System B-Series

Send us your room dimensions, ceiling height, intended capacity and power supply. Our technical team returns a specification, a layout drawing and a firm price — usually within two working days.

Request a Quotation

This inquiry is linked to the product above. Add your dimensions and quantity and we will price it.
