Studio Gobo G180

A rolling screen — soft one side, wood the other — for separation in one room.

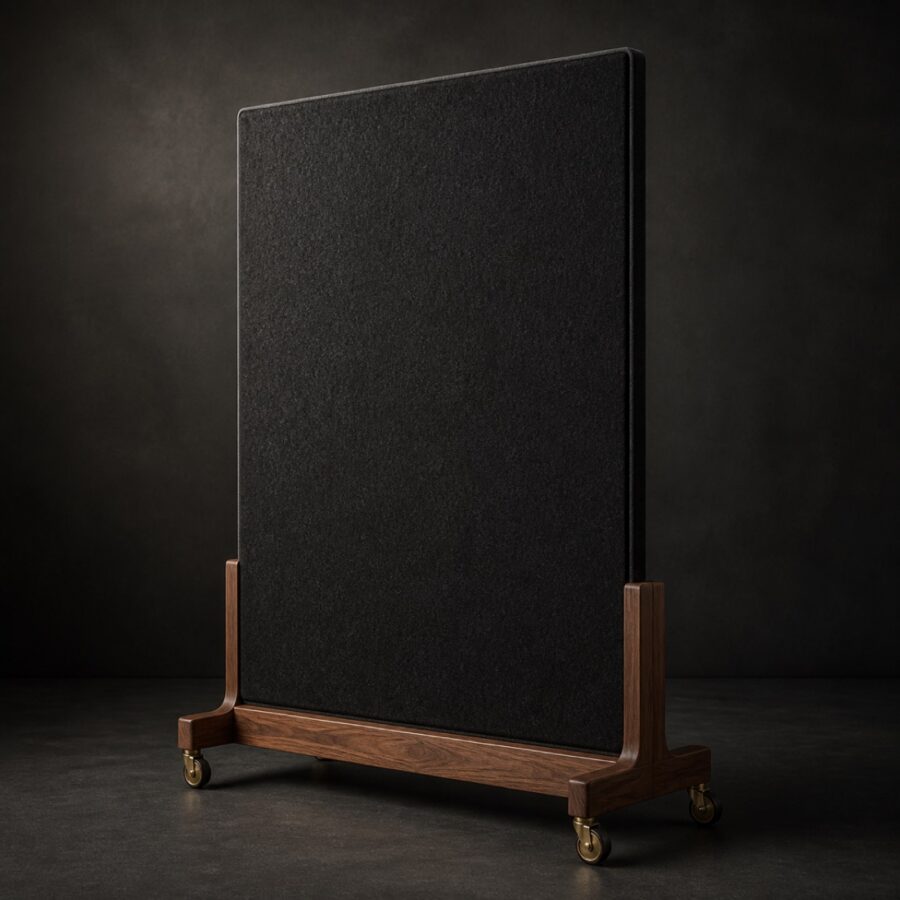

Studio Gobo G180 acoustic product photograph
Isolation Podcast Booth Recording Studio

A 1800 mm mobile screen on brass castors. Felt absorption on one face, a slatted scattering surface on the other, so you can turn the room around a session rather than rebuild it.

Ask a Technical Question
Acoustic Specification
Model Reference QF-G180-1200
Absorption Rating (NRC) 0.80
Absorption Average (SAA) 0.78
Absorption Class Class A, absorptive face
Effective Frequency Range 160 Hz – 8 kHz
Nominal Dimensions 1800 × 1200 mm
Depth 110 mm
Core Material Mineral wool 60 kg/m³ with 6 kg/m² barrier layer
Facing / Frame Felt one face, walnut slats reverse
Mounting Type Freestanding, braked brass castors
Unit Weight 34.0 kg
Fire Rating Class A
Standard Lead Time 5 weeks
Minimum Order 2 units

Separation without construction

A rolling screen will never replace a wall, and we will not pretend otherwise. What it does is take a real, useful bite out of the sound travelling between two sources in the same room — usually the difference between a recording you can use and one you cannot.

Construction

  • A dense internal barrier layer between the two faces.
  • Soft felt on one face, slatted hardwood on the other.
  • Braked castors with a low, wide base for stability.
  • Optional laminated glass window insert for sight lines.

Working with them

Screens work best close to the loud thing, not close to the microphone. Build a partial enclosure around the loud instrument and let the rest of the room stay open.
