Vocal Shield VS-Pro

A deep recording shield that keeps the room out of the voice.

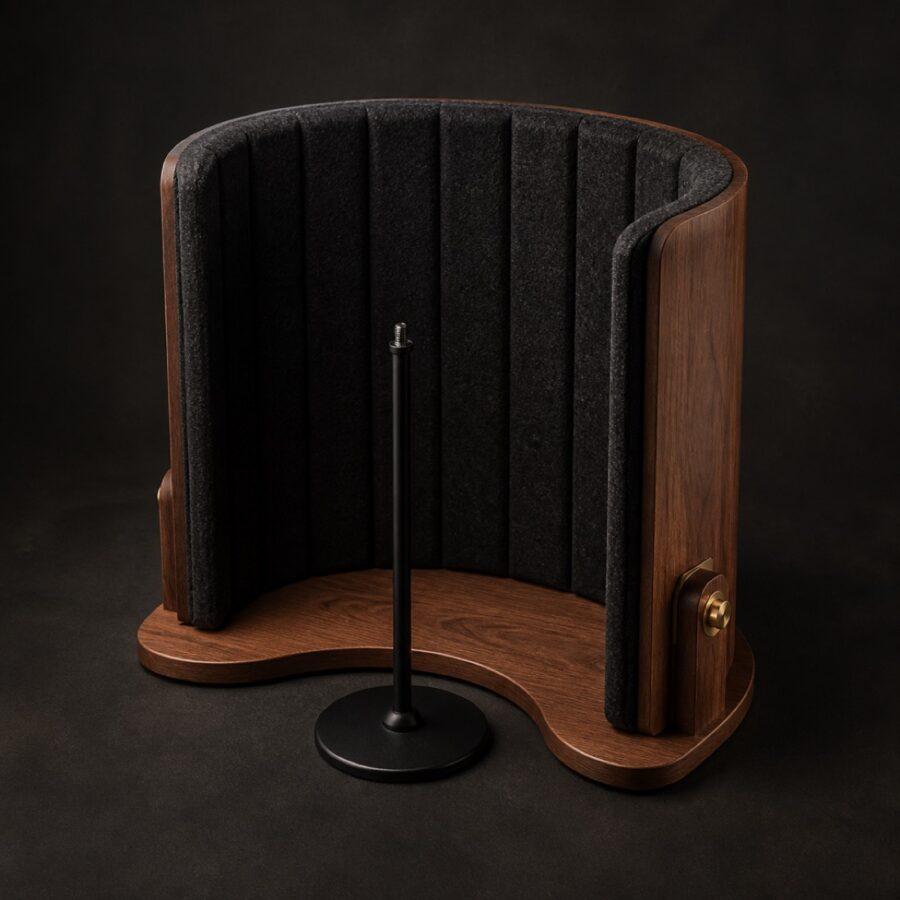

Vocal Shield VS-Pro acoustic product photograph
Isolation Podcast Booth Recording Studio

A 200 mm deep curved shell lined in graded felt, mounted on a walnut base. Removes early reflections around a close microphone without the boxy resonance cheap reflection filters add.

Ask a Technical Question
Acoustic Specification
Model Reference QF-VSP-700
Absorption Rating (NRC) 0.88
Absorption Average (SAA) 0.86
Absorption Class Class A
Effective Frequency Range 200 Hz – 10 kHz
Nominal Dimensions 700 × 560 mm aperture
Depth 200 mm shell depth
Core Material Graded felt, 40 mm to 90 mm
Facing / Frame Charcoal felt, walnut base and yoke
Mounting Type Desk base or 5/8 in stand thread
Unit Weight 7.6 kg
Fire Rating Class A
Standard Lead Time 3 weeks
Minimum Order 1 unit

Why depth matters

Most recording shields are a thin layer of foam, which takes the crispness out of a voice while letting the boomy part of the room straight through. The VS-Pro uses a deep, graded shell so the voice stays natural and the room stays out of the recording.

Construction

  • Curved shell with a felt lining that gets thicker towards the back.
  • Solid hardwood base with a cable channel.
  • Standard thread for boom or floor stand mounting.
  • Optional skirt for desks with hard, reflective surfaces.

Placement

Set the microphone a hand’s width inside the opening. Any deeper and the shell starts to colour the voice; any shallower and the room comes straight back in.

Same Product Line

Often specified together

Product Inquiry

Quote Vocal Shield VS-Pro

Tell us the quantity, the room it is going into and any finish requirements. Volume pricing, custom sizes and bespoke veneer are all available on request.
