Hot Water Rail Heating
Rail heating that puts pipe temperature at crop level and doubles as the transport rail, with mixing groups controlled per compartment.
- Pipe diameter 51 mm
- Flow temperature 30 - 85 °C
- Rail gauge 550 mm

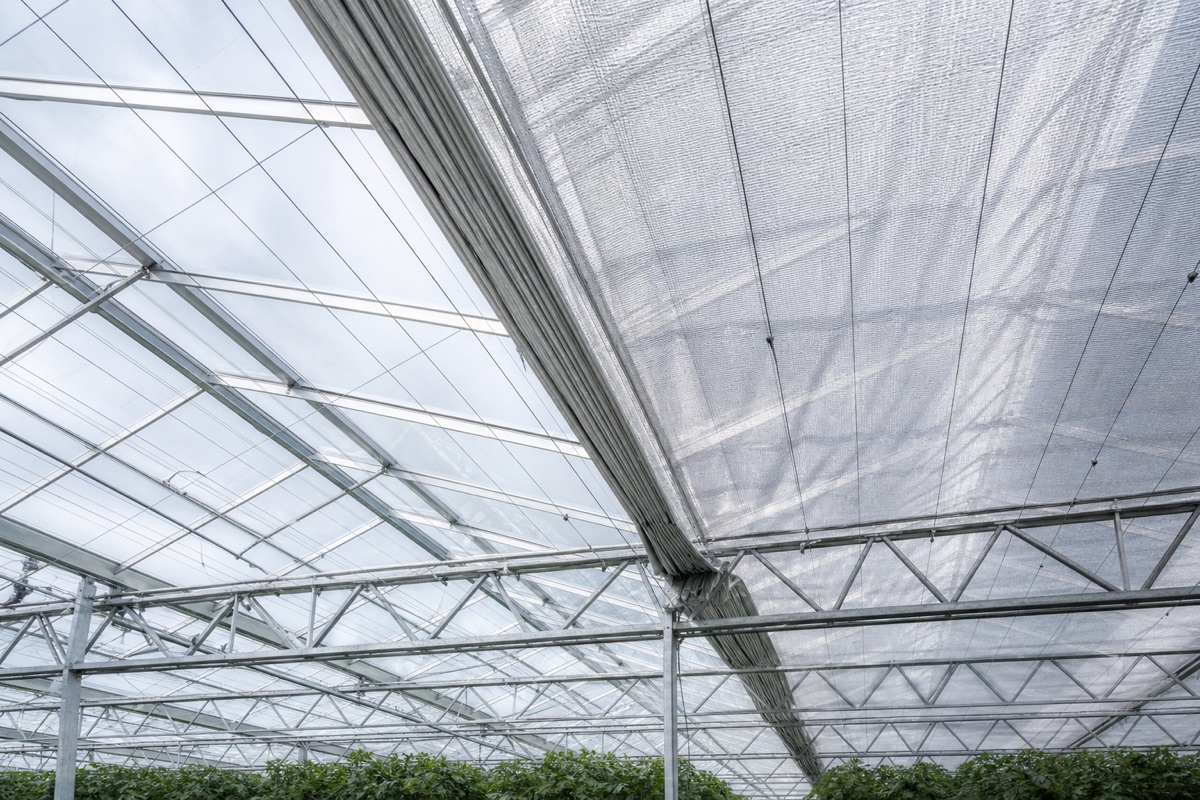

Energy & Shade Screen
Low-gap screen installation that saves energy at night without trapping humidity.
A rack-and-pinion screen installation with controlled gapping, letting a house hold heat at night while still exchanging enough air to keep humidity in band.
- Gap control in 1 % steps for humidity release
- Push-pull rack drive with anti-drift synchronisation
- Single or double layer with independent gap logic per layer
- Screen position fed back to the climate controller live
- Wire spacing engineered for minimum shadow at noon
Indicative lead time: 9 - 11 weeks
The humidity trap
A closed screen is an excellent insulator and an excellent humidity trap. Growers who close fully on cold nights routinely wake to condensation on the crop and a Botrytis problem three weeks later. The screen system addresses this with fine gap control: the climate controller opens the screen by one or two per cent to bleed moist air into the roof space, holding most of the energy benefit while keeping VPD out of the danger zone.
Shadow costs yield
Every wire, gutter and drive shaft above the crop removes light for the entire life of the greenhouse. Our installations are laid out for minimum projected shadow at solar noon on the shortest day, which is when your marginal light is worth the most.
Retrofitting an occupied house
Screen installations are frequently fitted into producing greenhouses. We stage the work compartment by compartment with the crop in place, working from mobile platforms above the gutter line.
Inquiry
Request pricing for Energy & Shade Screen
Share your crop, compartment area and target climate. An application engineer replies within one business day.
- Sized configuration matched to your compartment area.
- Bill of materials and single-line schematic.
- Commissioning and training scope included in every quote.
Inquiry: Energy & Shade Screen
Share your crop, compartment area and target climate. An application engineer replies within one business day.
