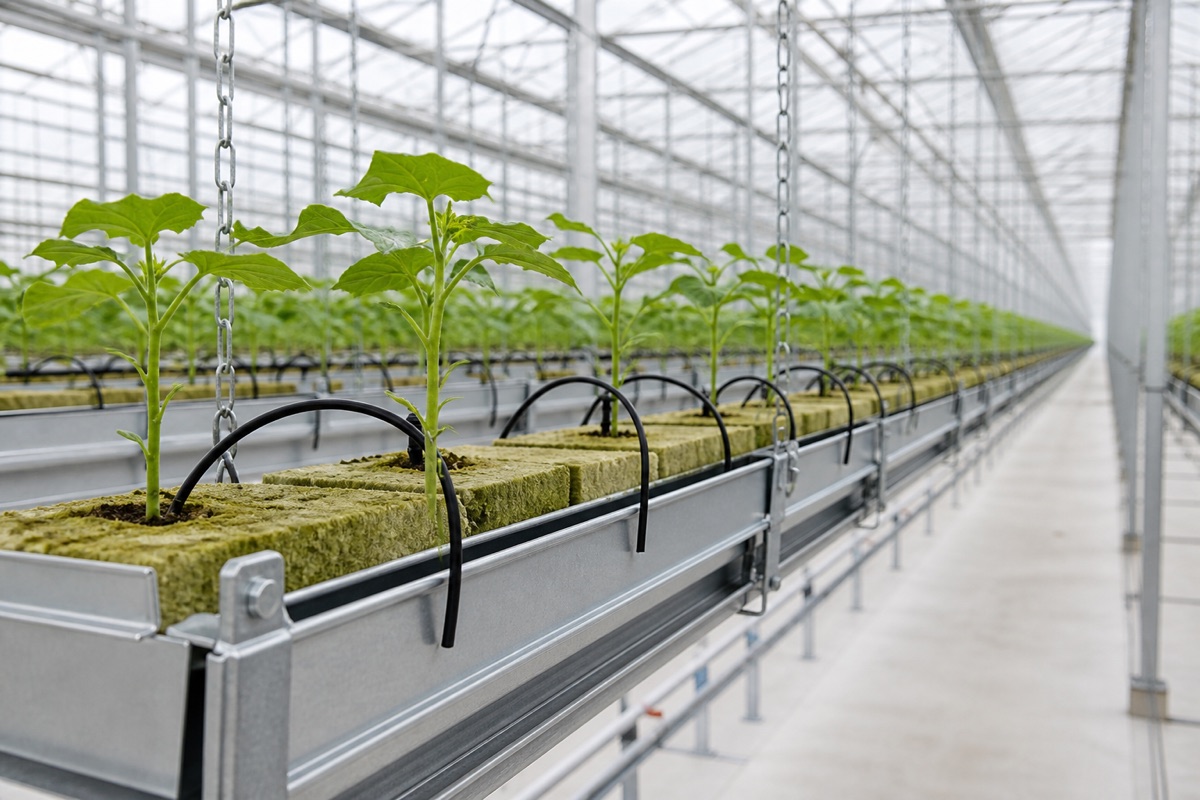

Hanging Gutter System
Suspended substrate gutters with true drain capture and adjustable working height.
Suspended cultivation gutters that capture 100 % of drain water, adjust to ergonomic working height and keep the greenhouse floor clear for hygiene.
- Full drain capture for recirculation and drain analysis
- Height adjustable through the crop cycle
- Clear floor beneath for washdown and machinery
- Corrosion-free profile with UV-stable coating
- Compatible with stonewool, coir and perlite slabs
Indicative lead time: 7 - 9 weeks
Drain you can actually measure
Recirculation strategy depends on knowing what left the slab. Floor-level growing gives you an estimate; a hanging gutter gives you the real number. Every hanging gutter run terminates in a measured collection point feeding drain volume and drain EC back to the fertigation controller.
Height as an ergonomic tool
Harvest and crop work account for a large share of operating cost. Adjustable suspension lets the crop be presented at a comfortable working height at each stage, which reduces both labour time and injury rates.
Hygiene under the crop
An open, washable floor breaks the soil-borne disease cycle that plagues ground-level substrate growing and allows mechanised transport under the rows.
Inquiry
Request pricing for Hanging Gutter System
Share your crop, compartment area and target climate. An application engineer replies within one business day.
- Sized configuration matched to your compartment area.
- Bill of materials and single-line schematic.
- Commissioning and training scope included in every quote.
Inquiry: Hanging Gutter System
Share your crop, compartment area and target climate. An application engineer replies within one business day.
