Mobile Rolling Bench
Rolling cultivation benches with ebb-and-flood trays, converting aisle space into growing area and reaching above 90 % floor utilisation.
- Bench width 1,650 mm
- Length Up to 32 m
- Roll travel 600 mm

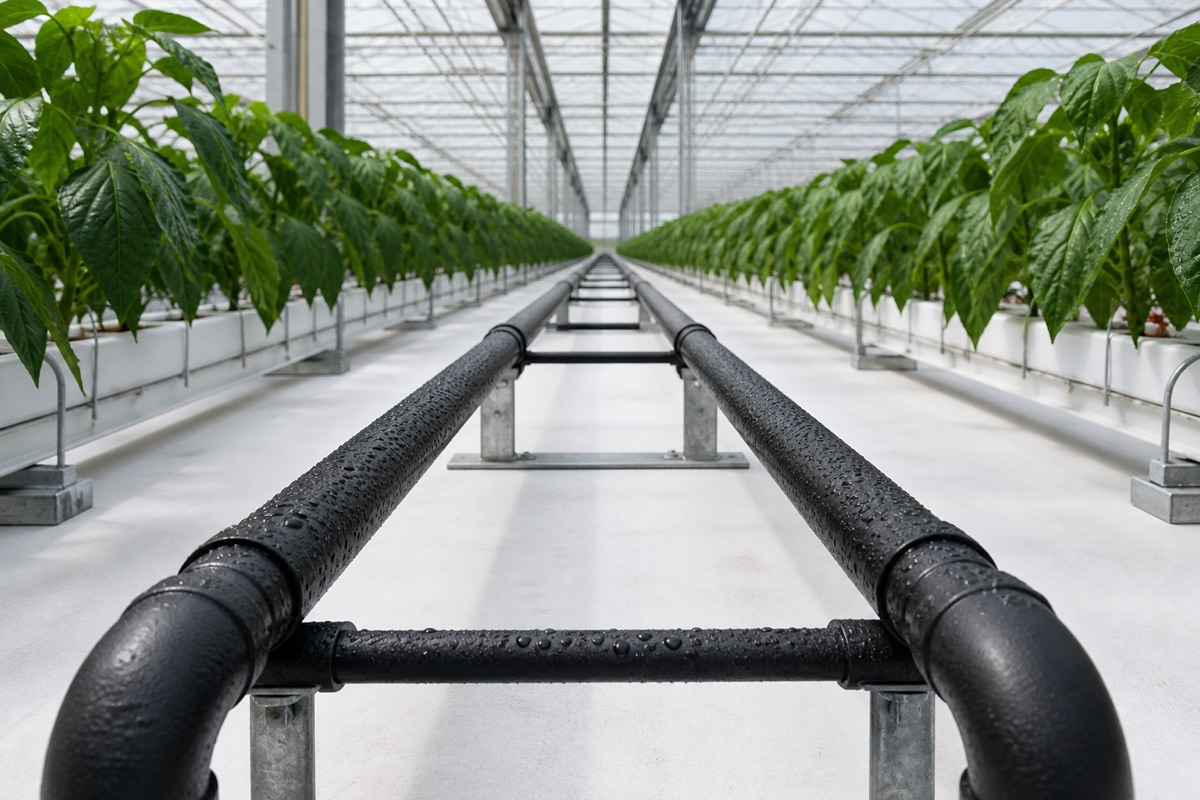

Hot Water Rail Heating
Heating pipe that doubles as the crop transport rail, placed where the plant needs it.
Rail heating that puts pipe temperature at crop level and doubles as the transport rail, with mixing groups controlled per compartment.
- Heat delivered at crop level where transpiration is driven
- Doubles as the trolley rail for crop work and harvest
- Per-compartment mixing group with weather compensation
- Low-temperature operation suits heat pumps and residual heat
- Expansion detailing engineered for the full run length
Indicative lead time: 6 - 8 weeks
Heat where it does work
Warm air at gutter level does very little for a crop. Rail heating places the pipe in the row at plant height, where it drives transpiration, keeps the fruit zone active and dries the microclimate around the lower leaves.
One structure, two jobs
The same pipe carries the harvest trolley. That removes a separate rail installation and keeps the floor clear.
Ready for low-temperature heat
Circuits are sized to deliver design output at flow temperatures a heat pump or an industrial residual heat source can actually supply, so the installation does not have to be replaced when the heat source changes.
Inquiry
Request pricing for Hot Water Rail Heating
Share your crop, compartment area and target climate. An application engineer replies within one business day.
- Sized configuration matched to your compartment area.
- Bill of materials and single-line schematic.
- Commissioning and training scope included in every quote.
Inquiry: Hot Water Rail Heating
Share your crop, compartment area and target climate. An application engineer replies within one business day.
Related Systems
Often specified together
Climate Sensor Node
A forced-aspiration measurement box for temperature, humidity, CO2 and PAR at crop height, with automatic drift detection between paired units.
- Temperature −10 to +60 °C, ±0.15 °C
- Humidity 0 - 100 % RH, ±1.5 %
- CO2 0 - 5,000 ppm NDIR, ±30 ppm
Roof Ventilation Drive
A rack-and-pinion roof vent drive with absolute position feedback, wind-side logic and a mechanical safety close that does not depend on the…
- Drive torque 750 Nm
- Vent length Up to 48 m per drive
- Opening angle 0 - 45°
