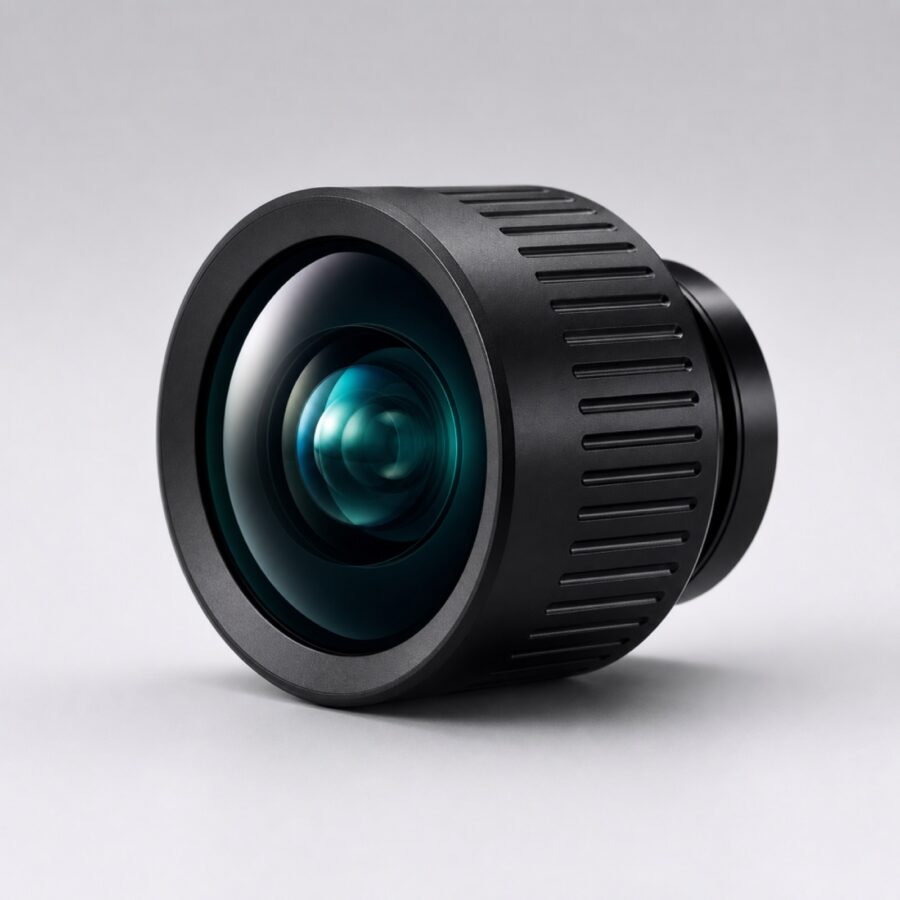

Model FX-1216
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.
The FX-1216 is a compact wide-angle lens for stations where the camera has to sit close to the part.
A compact wide-angle design always trades away some geometric accuracy, and we publish the real figure rather than a flattering one. For presence checks and code reading it is irrelevant; for precise measurement, step up to a measurement lens instead.
Robot guidance, tray presence checks, label placement and pick confirmation — anywhere coverage and brightness matter more than measurement-grade geometry.
| Focal Length | 12 mm |
|---|---|
| Aperture Range | F1.6 – F16 |
| Working Distance | 150 mm |
| Depth of Field | 26 mm |
| Field of View | 89 × 67 mm at 150 mm |
| Resolution | 130 lp/mm |
|---|---|
| Distortion (TV) | 0.85% |
| Wavelength Range | 400 – 700 nm |
| Mount | C-Mount |
|---|---|
| Max Sensor Format | 1/1.8″ |
| Image Circle | 9.0 mm |
| Min Pixel Size | 2.40 µm |
| Overall Length | 44 mm |
| Max Diameter | 38 mm |
| Weight | 130 g |
| Filter Thread | M30.5 × 0.5 |
| Operating Temperature | −10 – 50 °C |
