Model MX-5010
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.

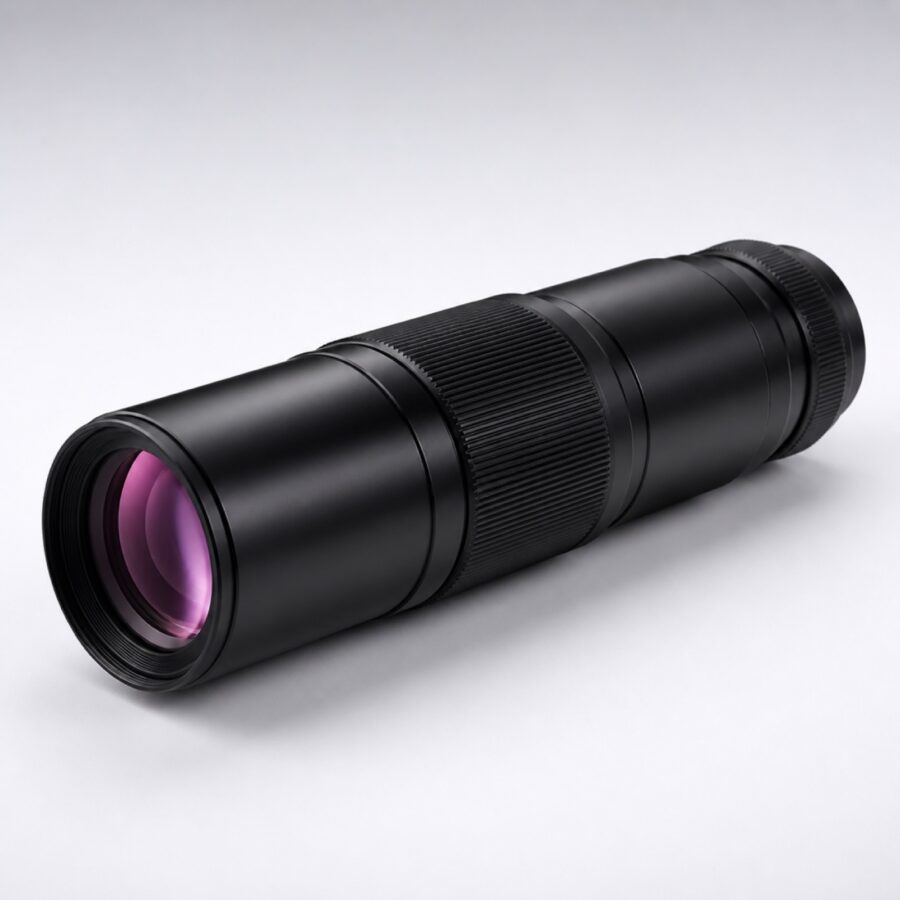

The MX-5010 is a close-up lens for imaging small parts at life size, where fine detail across the whole field matters.
At this magnification the in-focus zone is thin. Parts with height variation need either a focus stage or a fixture that holds the feature at a consistent height. The most common cause of disappointing results is the fixture, not the optics.
There is no zoom to drift out of adjustment. Once the standoff is set, the calibration holds for the life of the station — nobody can nudge it during a changeover.
| Focal Length | 50 mm |
|---|---|
| Magnification | 1.0× |
| Aperture Range | F2.8 – F32 |
| Working Distance | 100 mm |
| Depth of Field | 0.9 mm |
| Field of View | 14.1 × 10.3 mm on 1.1″ |
| Resolution | 200 lp/mm |
|---|---|
| Distortion (TV) | 0.06% |
| Wavelength Range | 435 – 656 nm |
| Mount | C-Mount |
|---|---|
| Max Sensor Format | 1.1″ |
| Image Circle | 17.6 mm |
| Min Pixel Size | 1.85 µm |
| Overall Length | 138 mm |
| Max Diameter | 44 mm |
| Weight | 340 g |
| Filter Thread | M40.5 × 0.5 |
| Operating Temperature | 0 – 50 °C |
