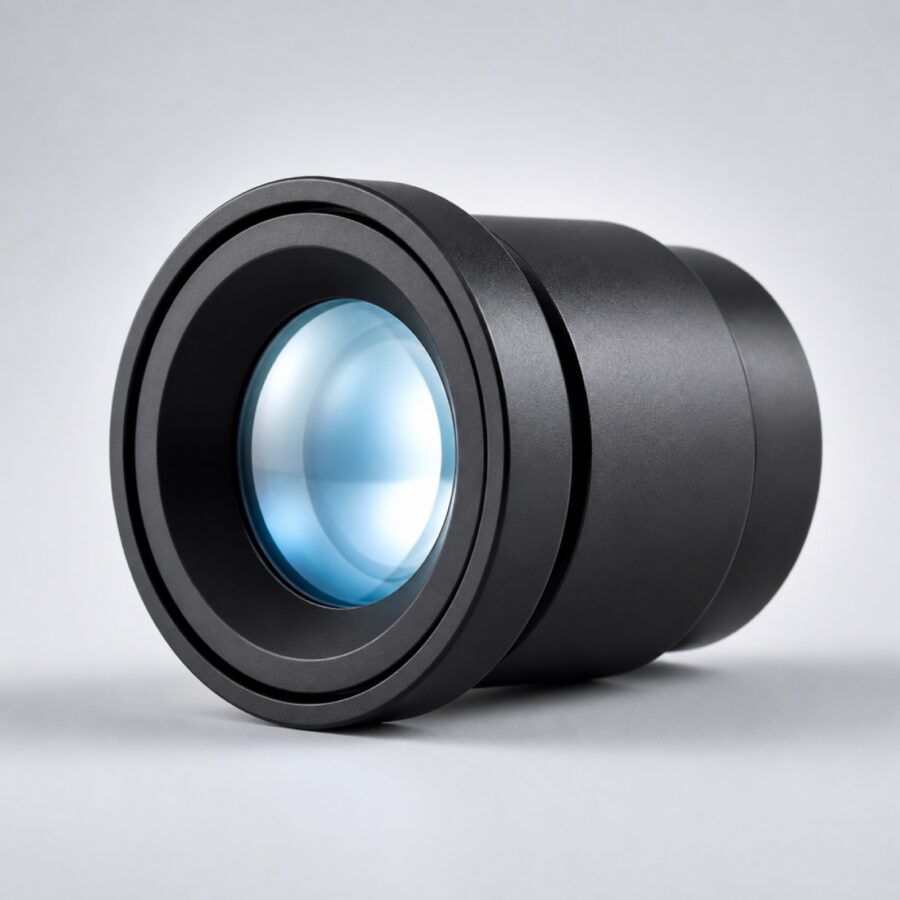

Model UV-3505
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.
Ordinary lenses do not transmit ultraviolet light. The UV-3505 is built from materials chosen specifically for UV work, for inspections that visible light cannot do.
Adhesives that are invisible in white light glow brightly under UV. Coatings that look uniform reveal their thickness variation. None of this works through a standard lens, however good it is.
UV imaging almost always needs a filter to block ordinary room light. A matching filter from our filter set is available for this lens.
| Focal Length | 35 mm |
|---|---|
| Aperture Range | F2.8 – F16 |
| Working Distance | 200 mm |
| Depth of Field | 8.5 mm |
| Field of View | 50 × 38 mm at 200 mm |
| Resolution | 110 lp/mm |
|---|---|
| Distortion (TV) | 0.22% |
| Transmission | 92% |
| Wavelength Range | 250 – 400 nm |
| Mount | C-Mount |
|---|---|
| Max Sensor Format | 2/3″ |
| Image Circle | 11.0 mm |
| Min Pixel Size | 4.50 µm |
| Overall Length | 76 mm |
| Max Diameter | 46 mm |
| Weight | 280 g |
| Filter Thread | M34 × 0.5 |
| Operating Temperature | 0 – 45 °C |
