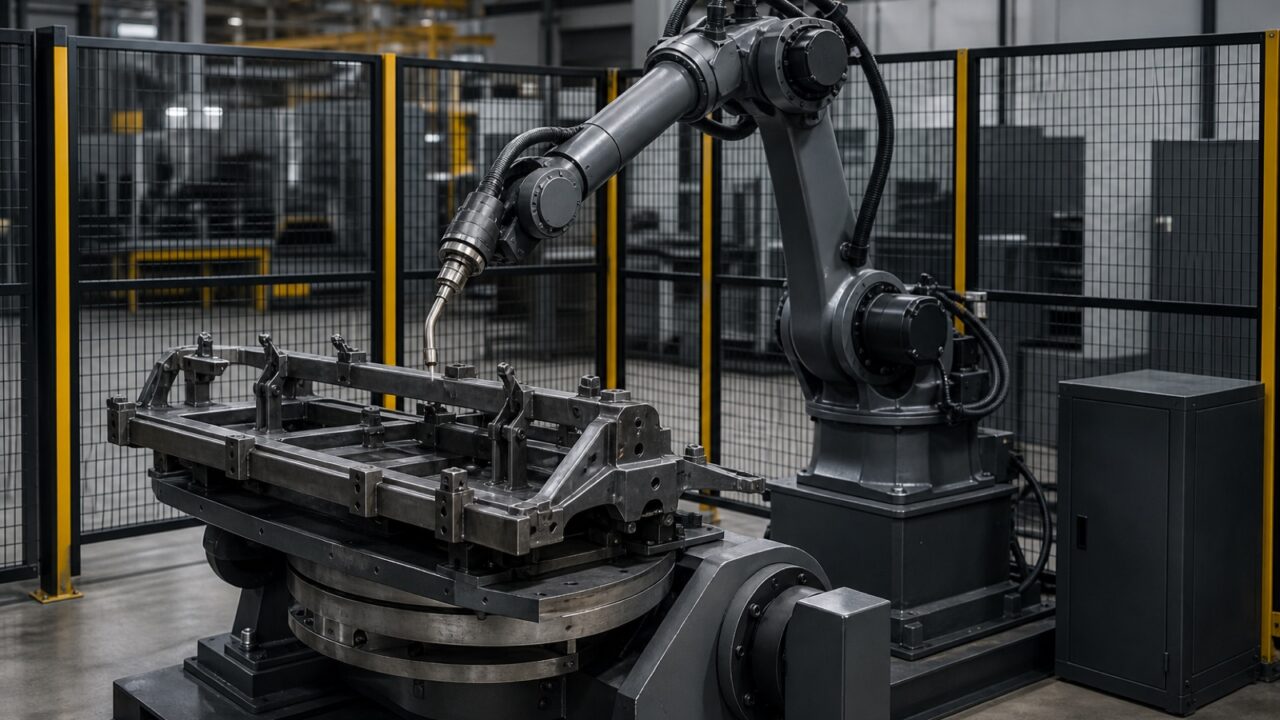

The twin-station cell is our standard platform for medium-volume production. A rotating table splits the cell into two identical work zones: while the robot welds inside the enclosure, the operator unloads and reloads the outboard station, so the arc keeps working with almost no waiting time.
Where it fits
The cell suits brackets, frames, housings and similar subassemblies in common sheet and plate thicknesses. Jobs are selected from the operator panel, with no reprogramming needed for a routine changeover.
Delivered as one system
Robot, power source, fixturing, guarding and fume extraction are engineered, built and tested together, then commissioned as a single complete system on your floor.
| Robot payload | 12 kg |
|---|---|
| Robot reach | 1 440 mm |
| Pose repeatability | ±0.05 mm |
| Index time | 2.4 s |
| Station swing diameter | 1 250 mm |
| Station payload | 250 kg per side |
| Welding process | GMAW / pulsed GMAW / cored wire |
| Power source | 400 A at 60 % duty cycle |
| Cell footprint | 4 200 × 2 800 mm |
| Supply | 400 V, 3 ph, 50/60 Hz, 32 A |
