Metal Fabrication

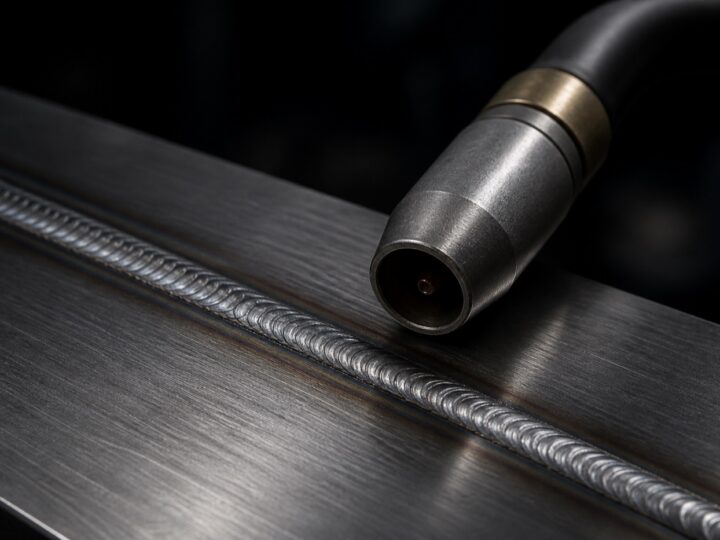

Keeping Weld Spatter Under Control

Spatter is not just a cleaning problem. It drives nozzle life, arc start reliability and downstream labour. Three levers control…

Twin-Station Welding Cell

Two-station index cell that welds one side while the operator loads the other, removing load time from the cycle.

• Robot payload12 kg
• Robot reach1 440 mm
• Pose repeatability±0.05 mm

Collaborative Welding Cell

Compact hand-guided cobot bench for high-mix, low-volume shops that change over several times a shift.

• Cobot payload12 kg
• Cobot reach1 300 mm
• Pose repeatability±0.10 mm

Modular Welding Fixture System

Pneumatic clamping fixtures designed for repeat location within 0.2 mm and fast changeover.

• Base plate600 × 800 to 1 500 × 2 500 mm
• Location repeatability±0.20 mm
• ClampingPneumatic toggle, 6 bar

Robotic MIG Torch Package

Water-cooled robotic torch with anti-collision mount, neck alignment jig and consumable programme.

• Rated current500 A at 100 % duty cycle, mixed gas
• CoolingLiquid, 1.2 l/min minimum flow
• Wire range0.8 – 1.6 mm

Weld Fume Extraction

Source-capture extraction with self-cleaning cartridge filtration sized for continuous robotic duty.

• Airflow3 000 m³/h
• Capture methodHood and on-torch extraction
• FiltrationCartridge, 99.9 % at 0.5 µm
