MS-R18 · Residential

MS-R18 Studio Apartment

A compact self-contained studio for high-density schemes, on the same stacking geometry as the MS-R30.

28.6m²Floor area

2.60mClear height

14.9 tShip weight

8Max storeys

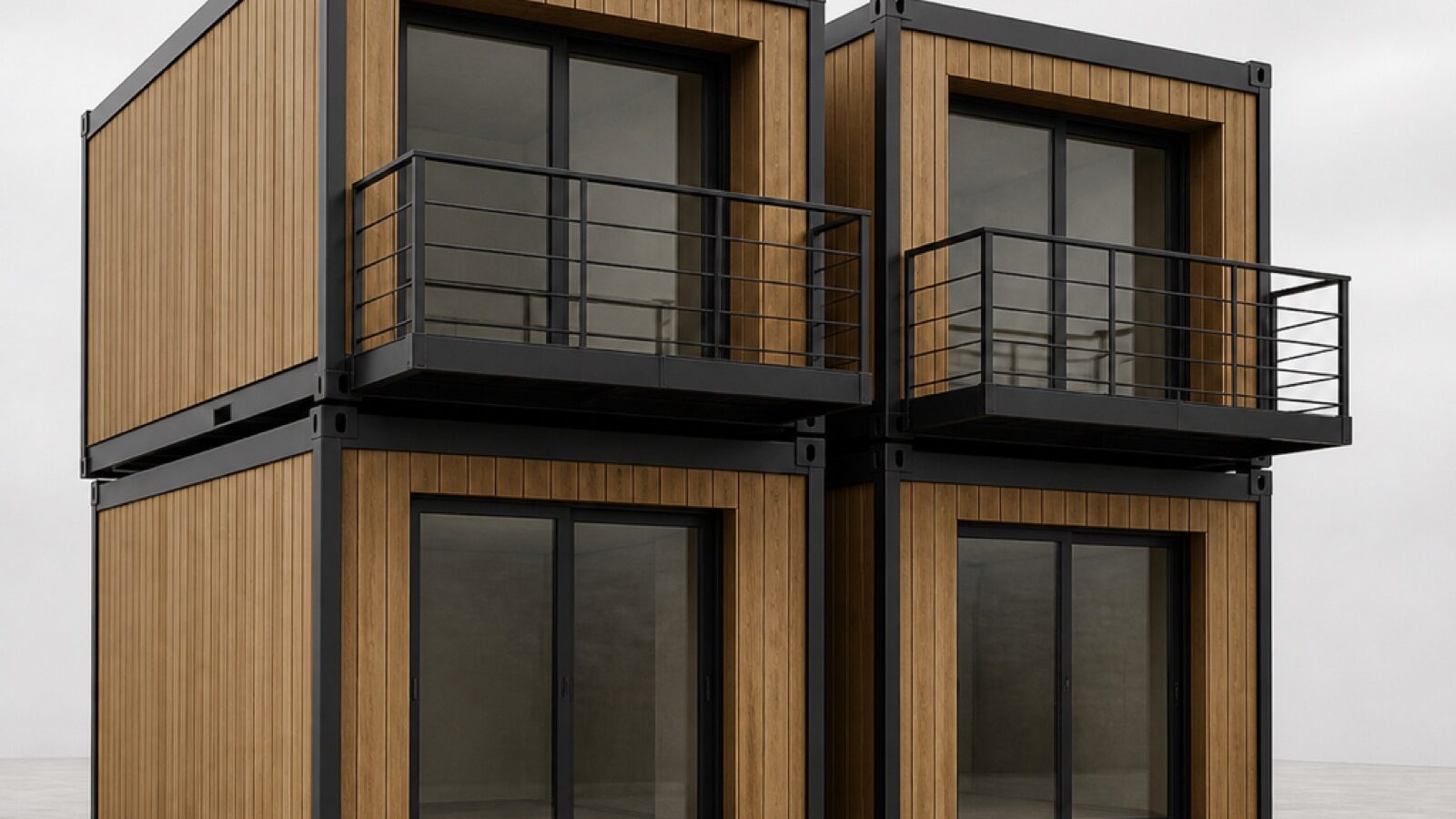

MS-R18 Studio Apartment volumetric module unit

Specification

Built to a fixed, certified envelope.

Mixed stacks are the point here. Because the MS-R18 shares corner geometry with the MS-R30, a scheme can put studios on the lower floors and one-beds above without changing the structural grid, the crane rigging or the stitching detail.

01 Full wet room with level-access shower, water-tested
02 Compact kitchen run with induction hob and integrated fridge
03 Built-in wardrobe, desk and bed platform
04 Mechanical ventilation with heat recovery per unit
05 Corner geometry shared with MS-R30 for mixed stacks

Production record

Unit codeMS-R18
External L × W × H8.40 × 3.40 × 3.25 m
Internal clear height2.60 m
Floor area28.6 m²
Shipping weight14.9 t
Envelope U-value0.12 W/m²K
Fire ratingREI 90
Acoustic (party wall)57 dB Rw
Max stack8 storeys
Design occupancy2 persons
Factory lead time8 weeks
TransportStandard 13.6 m trailer, over-width permit
Structural systemHybrid steel frame with CLT floor cassette
Typical useStudent accommodation, co-living, single-person key worker housing

Logistics

How this unit reaches your site

Transport envelope — MS-R18 Studio Apartment

Shipping section 3.40 m wide × 3.25 m high, travelling at 4.40 m over the carriageway.

Unit study

Over-width permit required3.40 m shipping width against a 2.60 m legal limit — escort vehicle and daylight running.

Route survey required4.40 m on a 1.15 m deck against a 4.15 m legal travel height.

Within standard axle loading14.9 t shipping weight against a 24.0 t legal payload.

Fits a standard 13.6 m deck8.40 m unit length on a 13.60 m deck.

Enquiry

Price MS-R18 Studio Apartment for your site.

Tell us how many units, the site address and the target handover date. We come back with a unit schedule, a transport plan, a crane study and a price band.
