MS-S24 Studio Unit

The workhorse of the range: a single-span studio unit that ships on a standard trailer and lands as a finished room.

41.5m²Floor area

2.70mClear height

14.8 tShip weight

4Max storeys

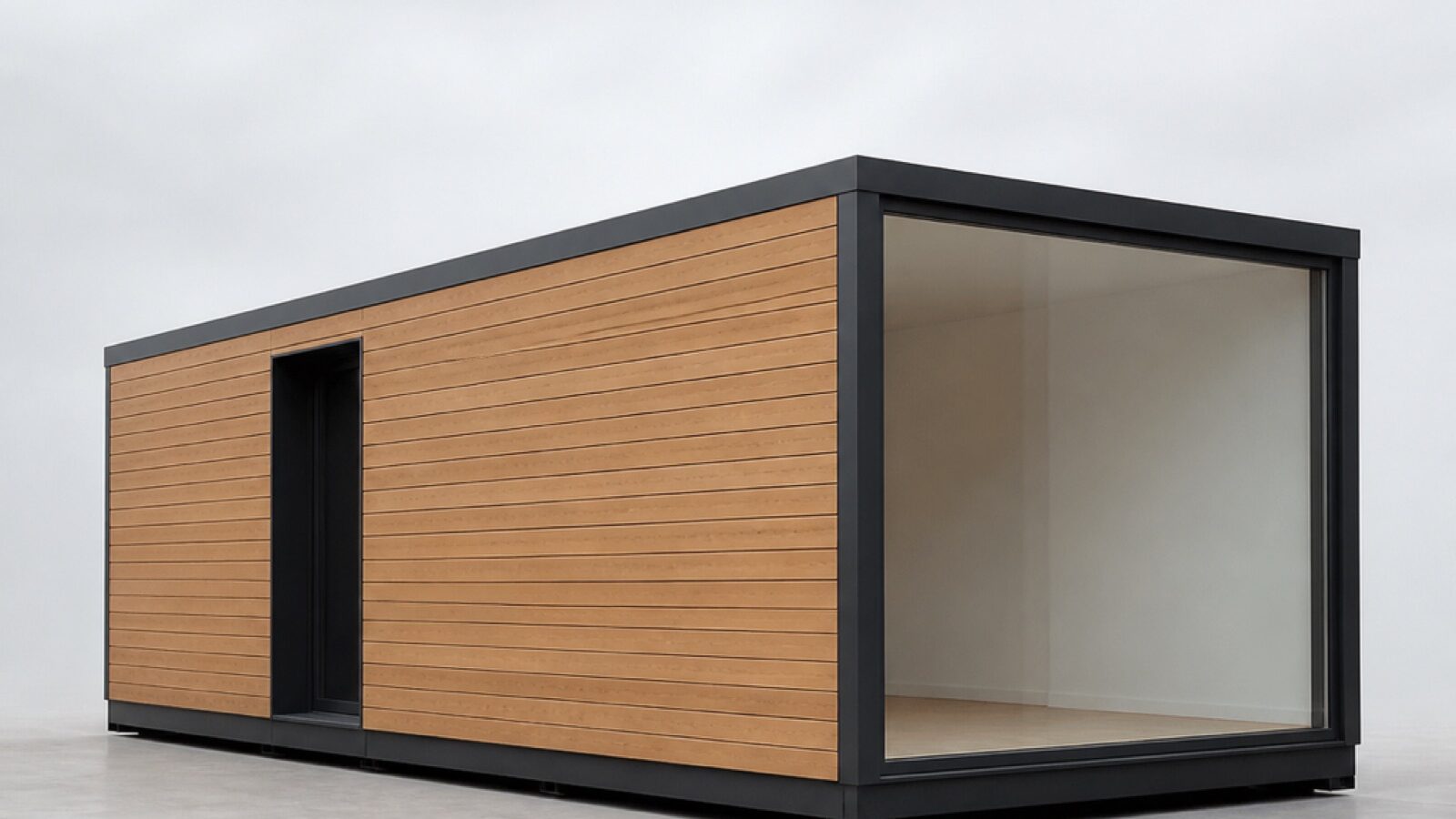

MS-S24 Studio Unit volumetric module unit

Specification

Built to a fixed, certified envelope.

The MS-S24 is the unit most of our clients start from. It is a single-span volumetric room with no internal structure, which means the tenant can subdivide it later without touching anything that carries load. The frame is a welded steel corner-post cage; the floor is a composite cassette with the underfloor service void already routed and terminated at a single connection plate.

01 Full-height glazed end wall with dark steel reveals
02 Larch plywood lining on three walls, factory-finished
03 Underfloor service void with pre-terminated MEP tails
04 Single-point crane lift with four certified corner castings
05 Weathertight for outdoor storage up to 26 weeks

Production record

Unit codeMS-S24
External L × W × H12.20 × 3.40 × 3.30 m
Internal clear height2.70 m
Floor area41.5 m²
Shipping weight14.8 t
Envelope U-value0.16 W/m²K
Fire ratingREI 60
Acoustic (party wall)52 dB Rw
Max stack4 storeys
Design occupancy6 persons
Factory lead time9 weeks
TransportStandard 13.6 m trailer, over-width permit
Structural systemWelded steel corner-post frame
Typical useCreative studios, co-working bays, back-of-house offices, campus annexes

Logistics

How this unit reaches your site

Transport envelope — MS-S24 Studio Unit

Shipping section 3.40 m wide × 3.30 m high, travelling at 4.45 m over the carriageway.

Unit study

Over-width permit required3.40 m shipping width against a 2.60 m legal limit — escort vehicle and daylight running.

Route survey required4.45 m on a 1.15 m deck against a 4.15 m legal travel height.

Within standard axle loading14.8 t shipping weight against a 24.0 t legal payload.

Fits a standard 13.6 m deck12.20 m unit length on a 13.60 m deck.

Enquiry

Price MS-S24 Studio Unit for your site.

Tell us how many units, the site address and the target handover date. We come back with a unit schedule, a transport plan, a crane study and a price band.
