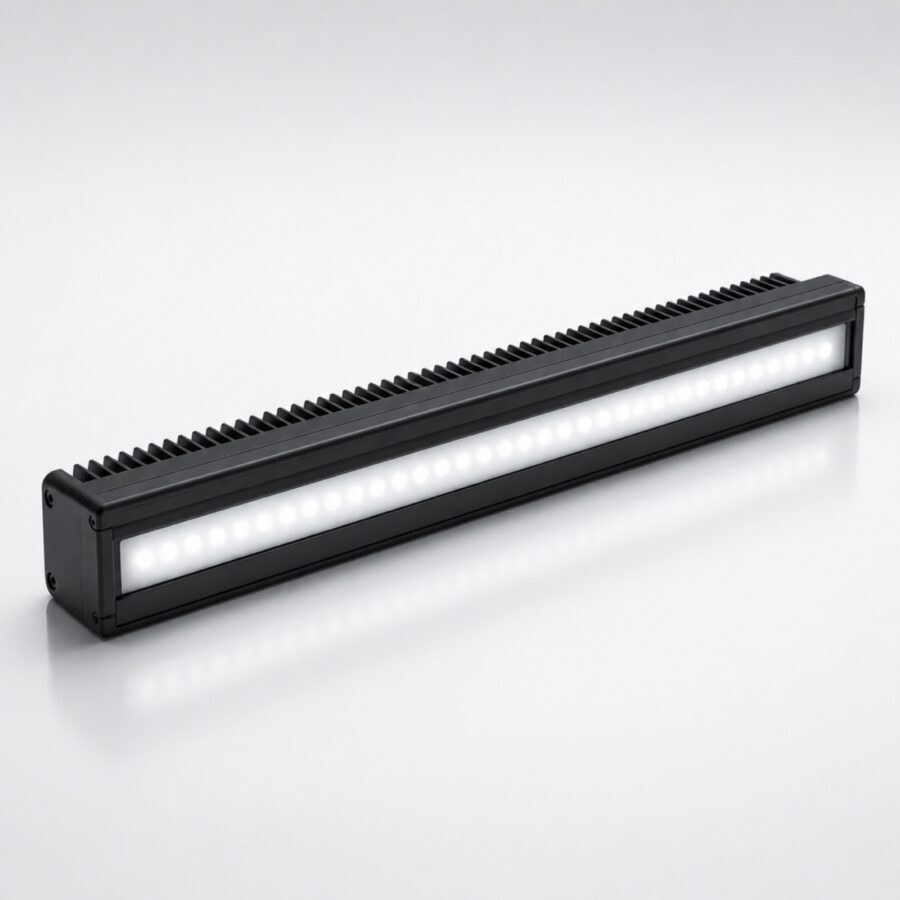

Model IL-B300
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.
Bar lights are the natural partner for line scan cameras. Two bars from opposite sides give even illumination; a single bar at a low angle turns surface texture into strong contrast.
LED output falls as temperature rises, so this model is built on a heavy finned heatsink that keeps brightness stable through round-the-clock operation.
The end caps are machined so multiple units join almost seamlessly, allowing very wide material to be lit evenly.
| Working Distance | 180 mm |
|---|
| Transmission | 94% |
|---|---|
| Wavelength Range | 465 / 525 / 625 / 850 nm |
| Mount | T-slot side rails |
|---|---|
| Overall Length | 300 mm |
| Max Diameter | 38 mm |
| Weight | 620 g |
| Operating Temperature | −10 – 55 °C |
