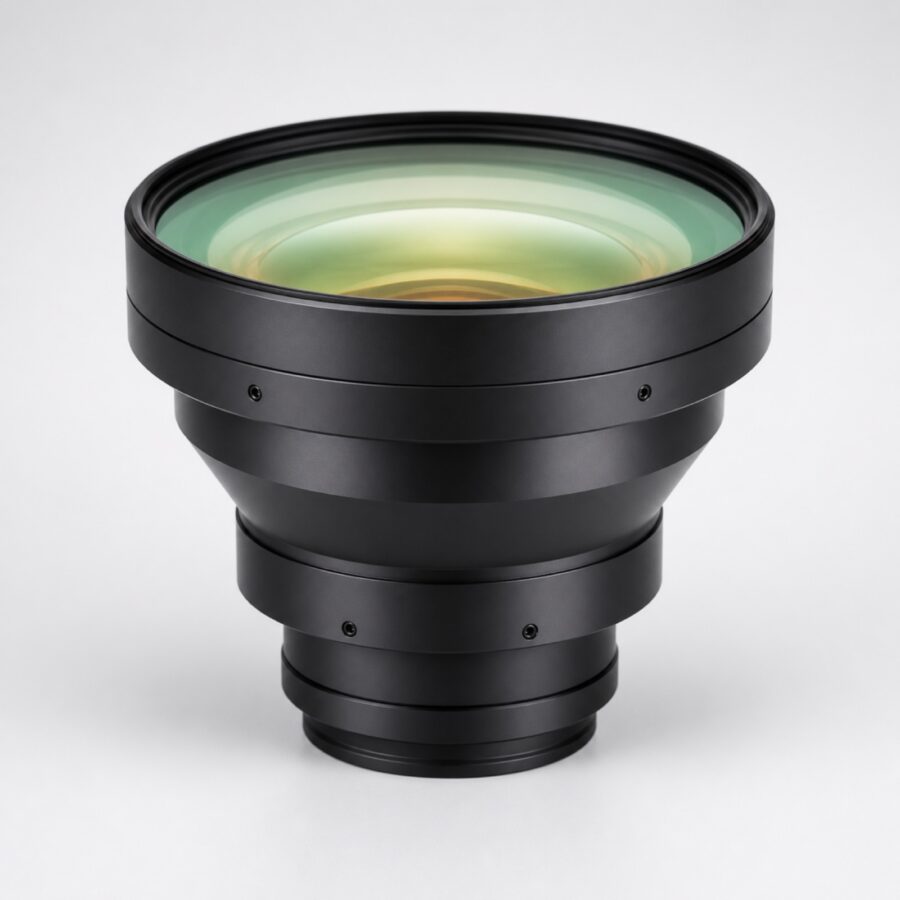

Model TL-0250
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.
When the part is too large for a standard measurement lens, the TL-0250 covers a wider field of view while keeping the same constant-scale behaviour.
The design keeps parts of varying height in focus without any mechanical adjustment between part types, which simplifies fixtures considerably.
This is a large, heavy lens. The supplied clamp ring carries the weight on the barrel rather than on the camera mount, and keeps the assembly aligned on a moving machine.
| Magnification | 0.25× |
|---|---|
| Aperture Range | F11 fixed |
| Working Distance | 182 mm |
| Depth of Field | 9.5 mm |
| Field of View | 56.4 × 41.2 mm on 1.1″ |
| Resolution | 90 lp/mm |
|---|---|
| Distortion (TV) | 0.08% |
| Telecentricity | 0.08° |
| Wavelength Range | 425 – 675 nm |
| Mount | M42 × 1 |
|---|---|
| Max Sensor Format | 1.1″ |
| Image Circle | 17.6 mm |
| Min Pixel Size | 4.50 µm |
| Overall Length | 246 mm |
| Max Diameter | 96 mm |
| Weight | 1350 g |
| Filter Thread | M77 × 0.75 |
| Operating Temperature | 0 – 50 °C |
