Model TL-0512
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.

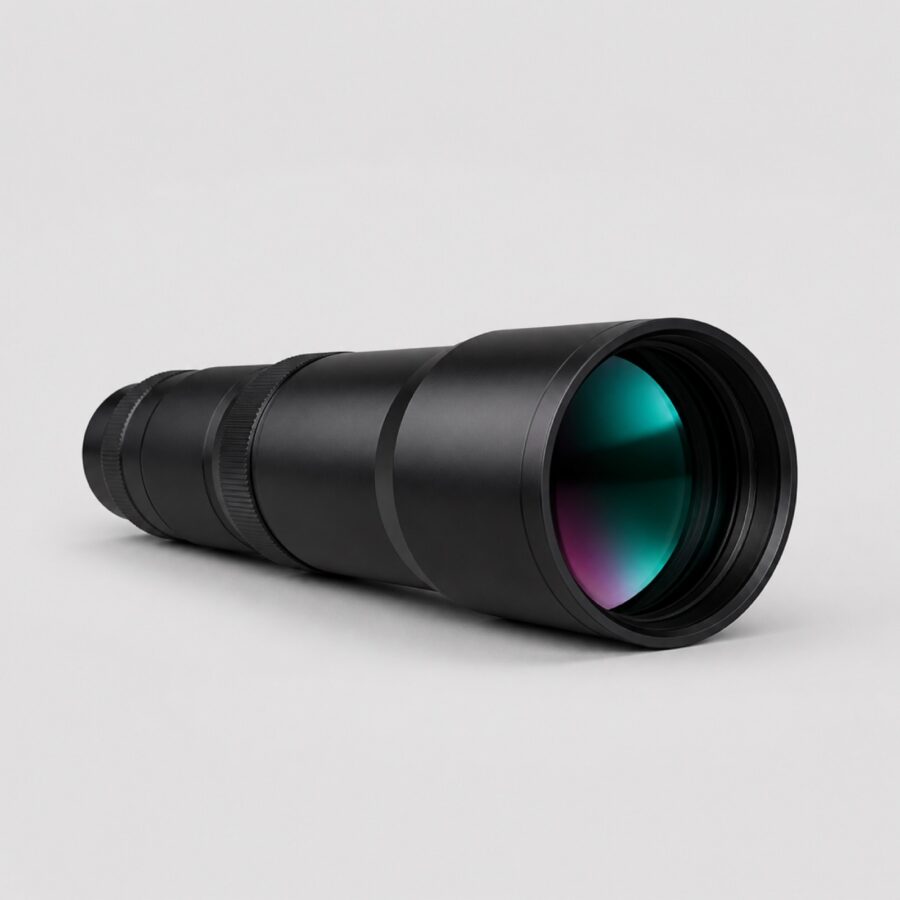

The TL-0512 is our most popular measurement lens, designed for bench inspection cells that check the size and shape of machined, stamped and moulded parts.
With an ordinary lens, a part that sits slightly closer to the camera looks slightly larger, which ruins a precise measurement. This design keeps the image scale constant even when the part position varies — which is the whole reason this type of lens exists.
For outline measurement, pair it with a backlight. For surface features, a low-angle ring light keeps the image even without harsh reflections. Both configurations are quoted with the lens.
| Magnification | 0.5× |
|---|---|
| Aperture Range | F8 fixed (F8 – F22 optional iris) |
| Working Distance | 110 mm |
| Depth of Field | 3.2 mm |
| Field of View | 17.6 × 13.2 mm on 2/3″ |
| Resolution | 120 lp/mm |
|---|---|
| Distortion (TV) | 0.05% |
| Telecentricity | 0.06° |
| Wavelength Range | 425 – 675 nm |
| Mount | C-Mount |
|---|---|
| Max Sensor Format | 2/3″ |
| Image Circle | 11.0 mm |
| Min Pixel Size | 3.45 µm |
| Overall Length | 148 mm |
| Max Diameter | 52 mm |
| Weight | 420 g |
| Filter Thread | M40 × 0.75 |
| Operating Temperature | 0 – 50 °C |
