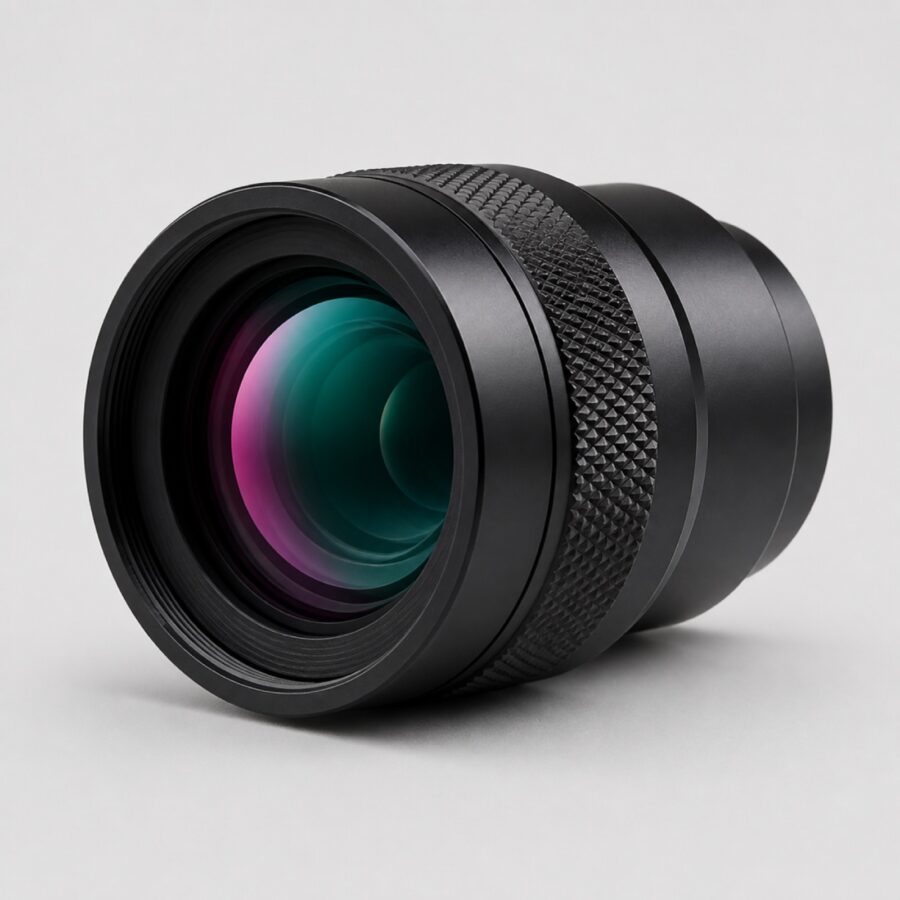

Model LS-6082
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.
The LS-6082 is a line scan lens for inspecting continuous material — film, foil, paper, textile or coated web — as it moves past the camera.
Line scan work uses the full width of the sensor, so this design is specified for sharpness at the edges of the image as well as the centre. The full performance curve is published on this page.
A single camera covers a typical web width. For finer detail, two cameras mounted side by side double the resolution on the material without changing the optic.
| Focal Length | 60 mm |
|---|---|
| Aperture Range | F4 – F22 |
| Working Distance | 340 mm |
| Depth of Field | 4.8 mm |
| Field of View | 380 mm web at 1:5.7 |
| Resolution | 160 lp/mm |
|---|---|
| Distortion (TV) | 0.12% |
| Wavelength Range | 400 – 700 nm |
| Mount | M42 × 1 |
|---|---|
| Max Sensor Format | APS-C / 8k line |
| Image Circle | 28.5 mm |
| Min Pixel Size | 3.50 µm |
| Overall Length | 118 mm |
| Max Diameter | 62 mm |
| Weight | 520 g |
| Filter Thread | M55 × 0.75 |
| Operating Temperature | −10 – 55 °C |
