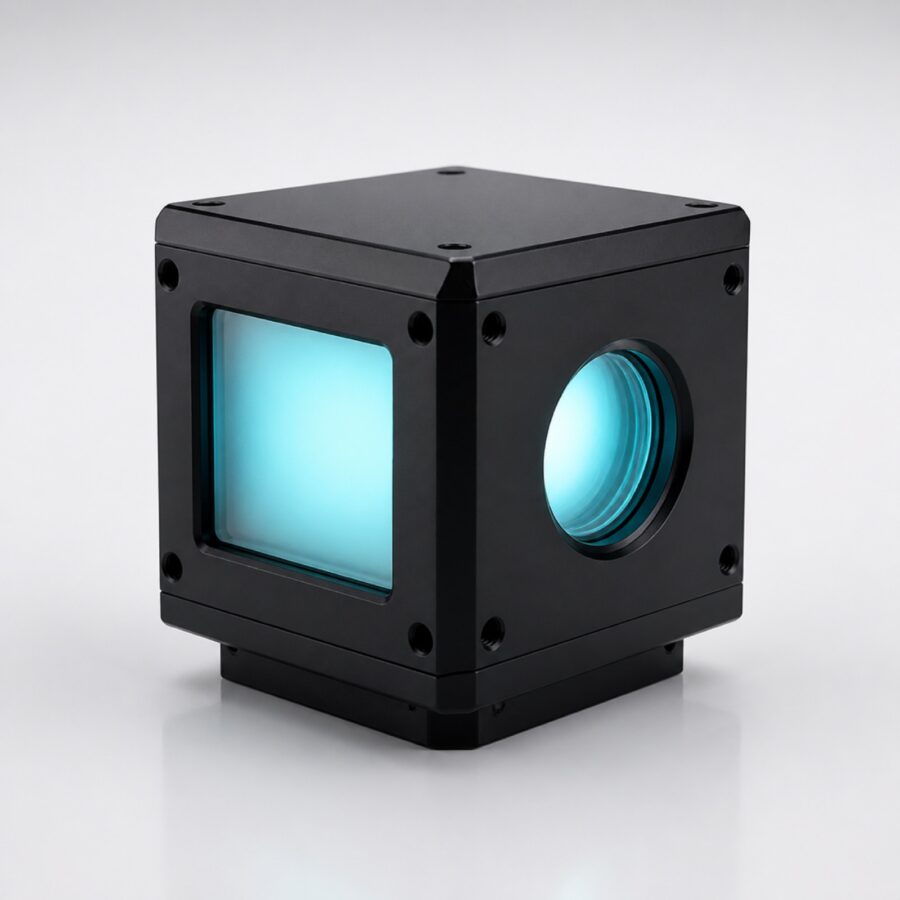

Model IL-C60
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.
Point a ring light at a polished surface and you photograph the light itself. Coaxial illumination solves this by sending light along the same axis the camera looks down.
A flat, shiny surface images uniformly bright. Any scratch, pit or mark scatters the light away and images dark. The contrast is close to black-and-white, which makes automated checking straightforward.
The internal beam splitter absorbs some light in each direction, so allow a wider aperture or a longer exposure than you would with direct lighting.
| Working Distance | 60 mm |
|---|
| Transmission | 48% |
|---|---|
| Wavelength Range | 525 / 625 nm or 6500 K white |
| Mount | C-Mount through-bore |
|---|---|
| Overall Length | 60 mm |
| Max Diameter | 60 mm |
| Weight | 240 g |
| Operating Temperature | 0 – 50 °C |
