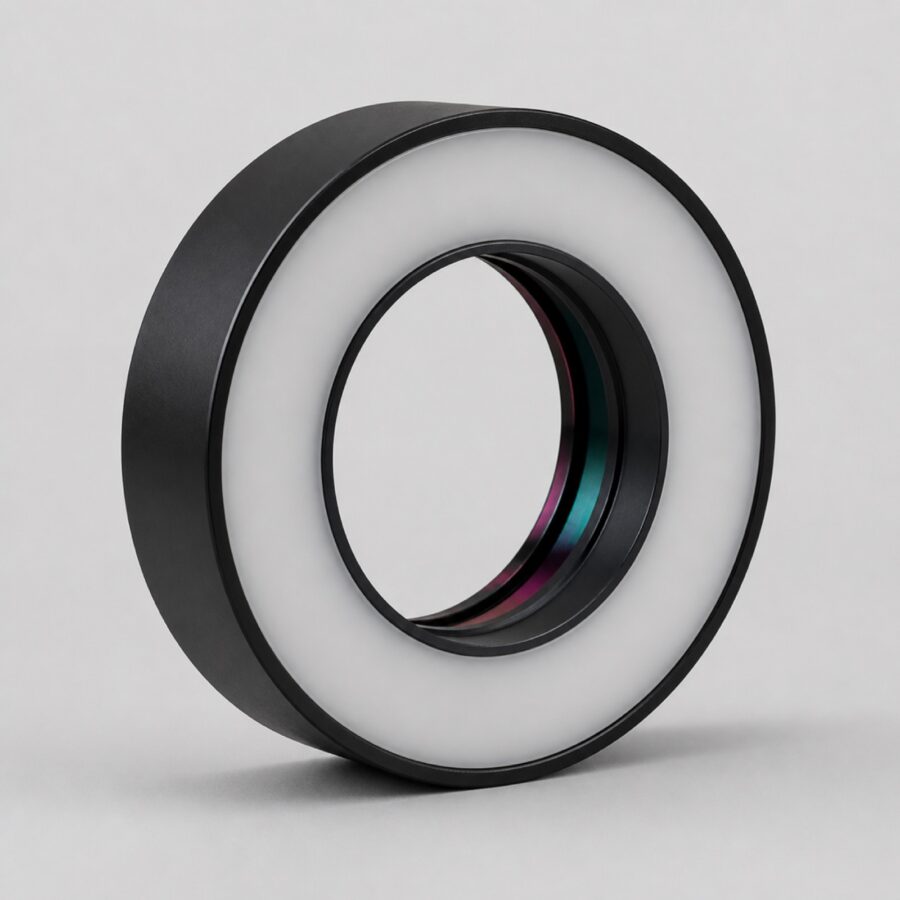

Model IL-R120
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.
A ring light is the usual first choice for general inspection because it is easy to mount and predictable. The difference between a good ring light and a cheap one is uniformity.
This model places its emitters behind a two-stage diffuser, so the illumination is even enough that simple image processing works without per-region correction.
Red suits most monochrome camera work, blue picks up fine surface texture, and white is for colour imaging or anywhere a human operator also has to look.
| Working Distance | 120 mm |
|---|
| Transmission | 96% |
|---|---|
| Wavelength Range | 465 / 525 / 625 nm or 6500 K white |
| Mount | Ø120 mm bracket |
|---|---|
| Overall Length | 32 mm |
| Max Diameter | 120 mm |
| Weight | 480 g |
| Operating Temperature | −10 – 50 °C |
