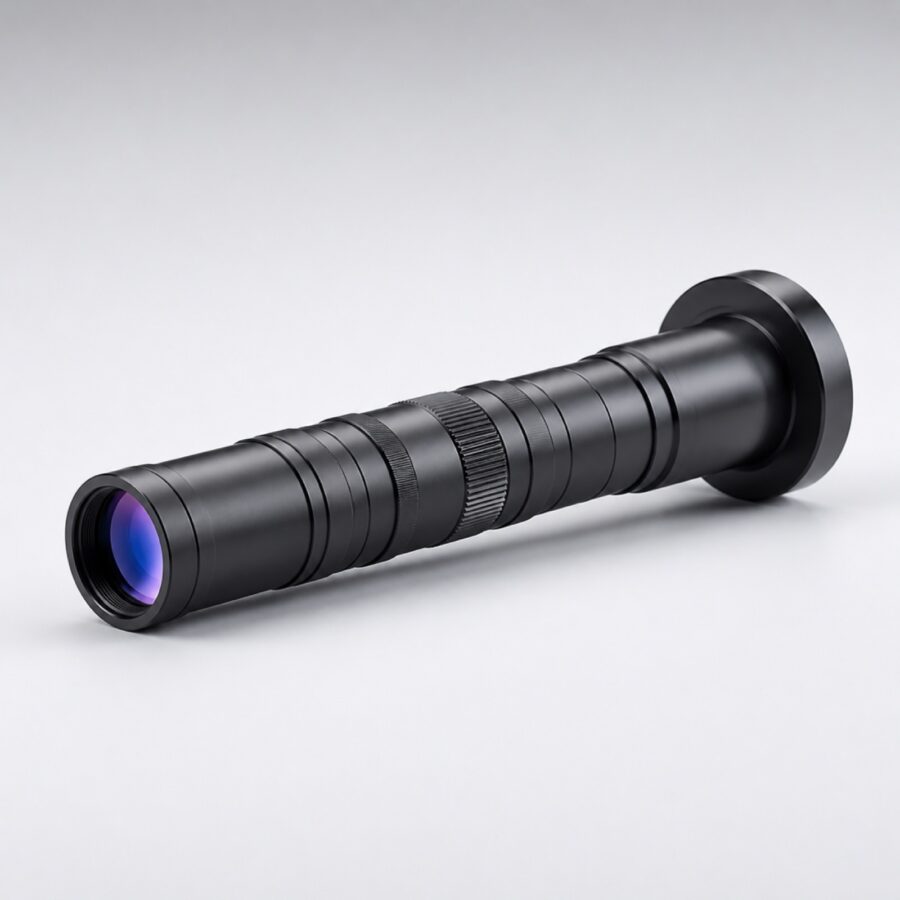

Model LS-9010
Every unit ships with its own acceptance report. Extension tubes and adapters quoted with the lens.
The LS-9010 is our wide-coverage line scan lens, intended for very wide webs and for inspection that combines visible and infrared light.
The design is corrected so that visible and near-infrared light focus in the same place, which means a white-light pass and an infrared pass can share the same mechanical setup.
The large image circle covers full-frame area sensors and the longest line scan arrays. Ask our application desk if you are pairing it with anything unusual.
| Focal Length | 90 mm |
|---|---|
| Aperture Range | F5.6 – F32 |
| Working Distance | 520 mm |
| Depth of Field | 7.4 mm |
| Field of View | 620 mm web at 1:4.8 |
| Resolution | 150 lp/mm |
|---|---|
| Distortion (TV) | 0.09% |
| Wavelength Range | 400 – 1000 nm |
| Mount | F-Mount |
|---|---|
| Max Sensor Format | Full Frame / 16k line |
| Image Circle | 43.3 mm |
| Min Pixel Size | 3.50 µm |
| Overall Length | 164 mm |
| Max Diameter | 68 mm |
| Weight | 780 g |
| Filter Thread | M62 × 0.75 |
| Operating Temperature | −10 – 55 °C |
