A robotic cell welds far more per shift than a manual bay, and it produces correspondingly more fume. Extraction sized for occasional manual work simply cannot keep up in continuous production.
Capture at the source

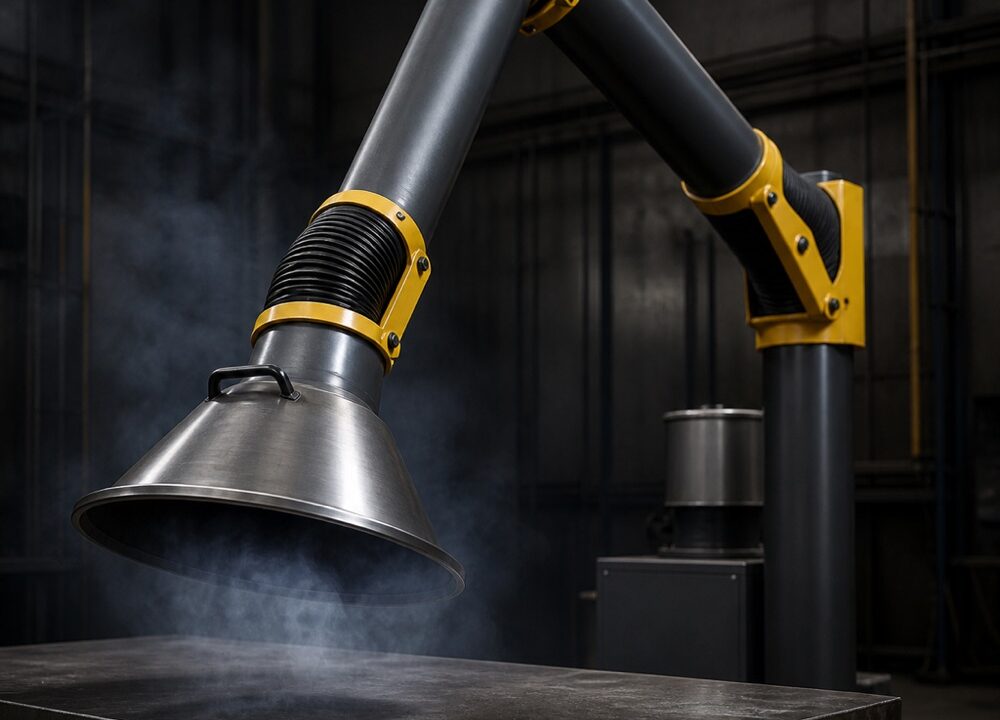

Good hood placement does more for capture efficiency than raw airflow. Extraction is positioned around the actual welding sequence and verified during commissioning rather than assumed from a fan curve.
Filter protection
Hot particles are separated out before they reach the filters, which removes a fire risk and significantly extends filter life in continuous operation.
| Airflow | 3 000 m³/h |
|---|---|
| Capture method | Hood and on-torch extraction |
| Filtration | Cartridge, 99.9 % at 0.5 µm |
| Filter cleaning | Automatic reverse-pulse |
| Filter area | 48 m² |
| Noise level | 68 dB(A) at 1 m |
| Spark arrestor | Cyclonic pre-separator |
| Monitoring | Differential pressure with alarm |
| Cartridge life | 18 – 30 months typical |
| Supply | 400 V, 3 ph, 50/60 Hz, 16 A |
