Survey
We measure the building before anything is drawn: clear height under the lowest obstruction, floor flatness, the column grid, sprinkler drops, and the working aisle the truck on site actually needs.
01 Pallet racking and storage systems
Every bay engineered to its load
Rackline designs, roll-forms and installs pallet racking. A layout starts from your pallet weight, clear height and truck type, and every drawing states the beam capacity and bay load it was calculated at.
Bay load
up to 18 000 kg
Frame height
2 000 - 14 000 mm
Design rules
FEM 10.2.02 / EN 15512
Deflection limit
span / 200
02 Product range
Six racking systems, one set of engineering rules
Selective, drive-in, cantilever, mezzanine, shuttle and longspan. Tell us the pallet, the throughput and the clear height, and we will say which of these fits the building.
View the full catalogue03 How we work
From a tape measure to a signed load notice
Design
Bay pitch, beam levels and frame depth follow from your pallet dimensions and weights. Layouts are calculated to the FEM 10.2.02 and EN 15512 design rules and issued with the load figures they were calculated at.
Roll-form
Uprights and beams are roll-formed and punched on our own lines, then degreased, phosphated and powder-coated before the sections are bundled by bay run for the site.
Install

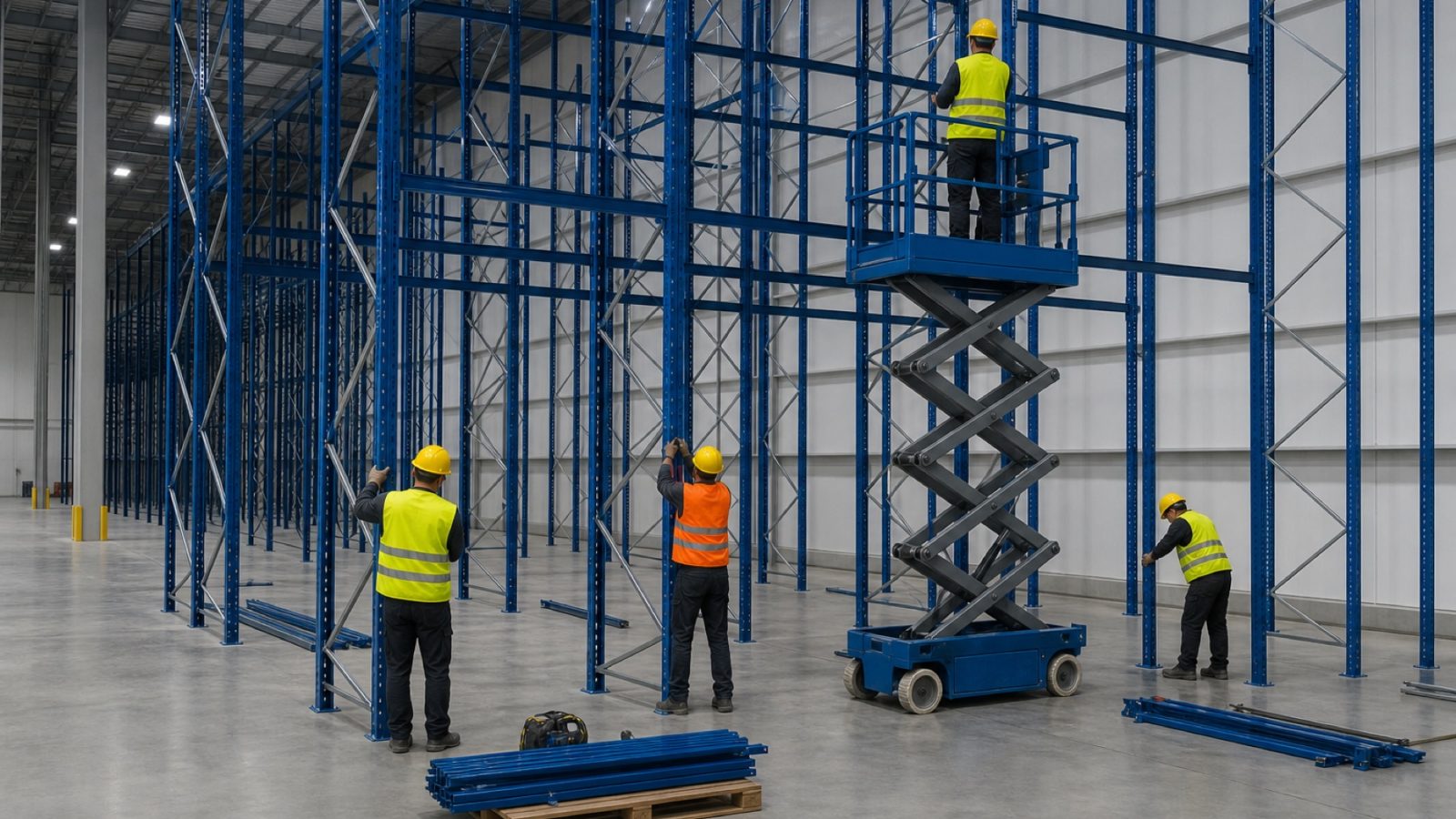

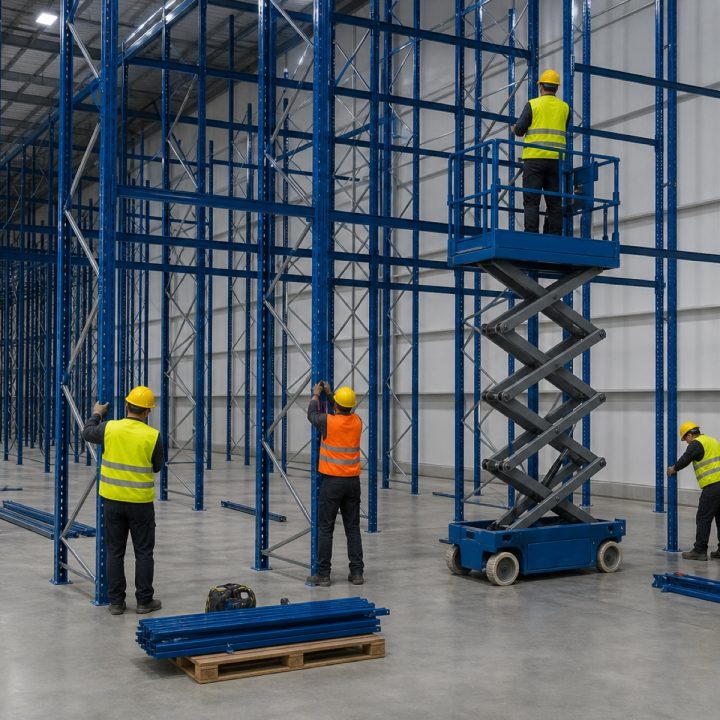

Crews set out from the approved drawing and torque the base fixings to the stated figure. Handover is a load notice, an as-built layout and the inspection interval we recommend for that duty.
04 Selected systems
The configurations specified most often
Each entry lists the upright section, the beam capacity per pair and the bay load it was calculated at. Send your pallet data and we will confirm the build.
All systemsRKL-RS150

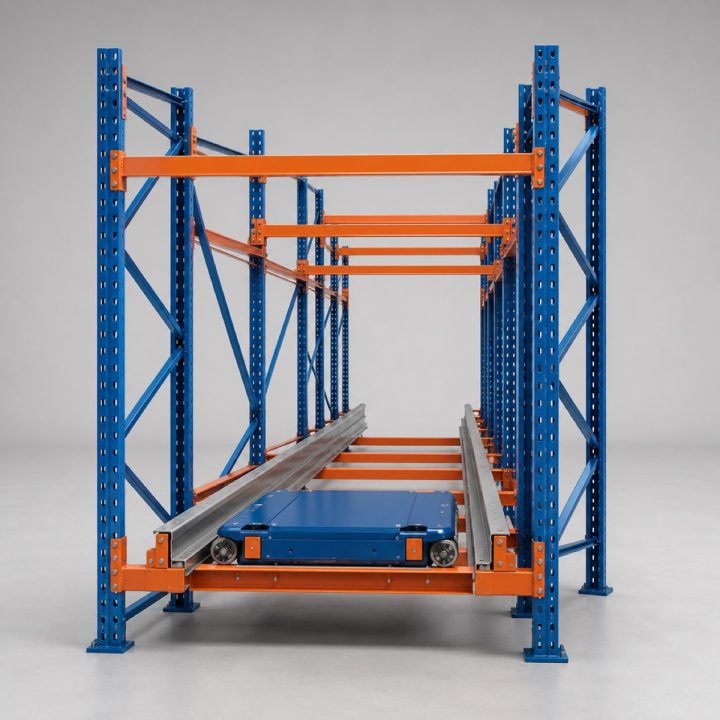

RS-150 Radio Shuttle Racking
- Upright section 120 x 95 mm, 2.0 / 2.5 / 3.0 mm gauge
- Rail capacity per pallet up to 1 500 kg
RKL-MZ200

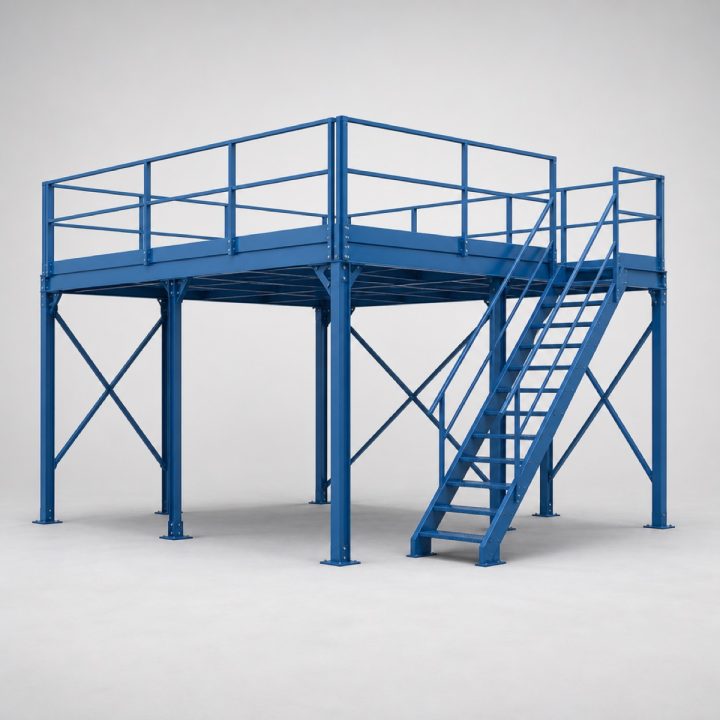

MZ-200 Mezzanine Floor System
- Uniform floor load 350 / 500 / 1 000 kg per square metre UDL
- Deflection limit span / 300 at rated load
RKL-CT70

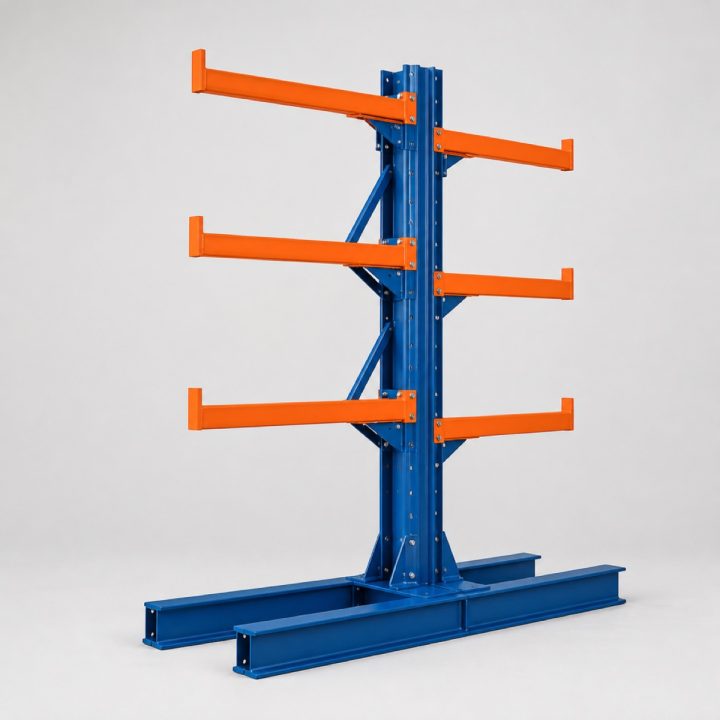

CT-70 Cantilever Racking
- Column section 100 x 100 mm box or IPE 160, by load case
- Arm capacity 500 - 1 500 kg per arm at full length
RKL-DI100

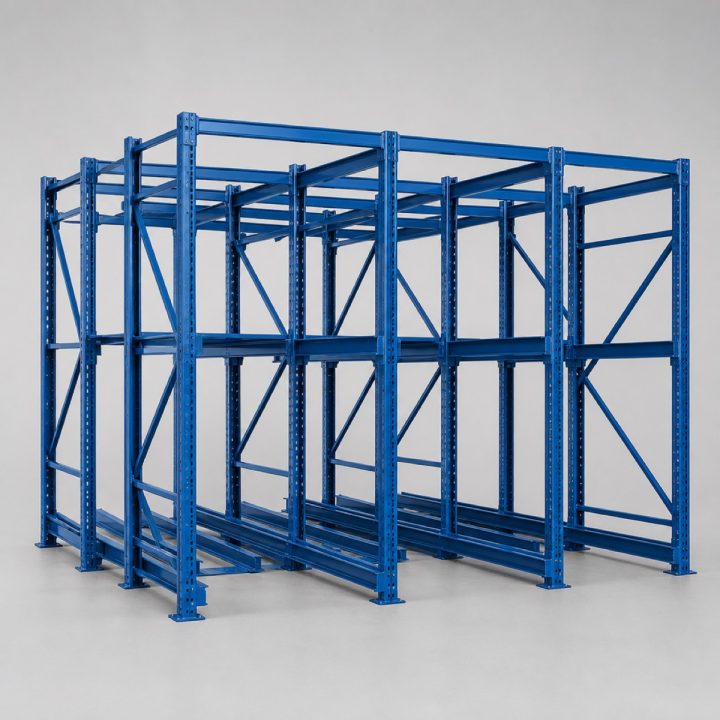

DI-100 Drive-In Racking
- Upright section 100 x 80 mm, 2.0 / 2.5 mm gauge
- Rail capacity per pallet up to 1 500 kg
RKL-SR120
SR-120 Heavy Duty Pallet Racking
- Upright section 120 x 95 mm, 2.0 / 2.5 / 3.0 mm gauge
- Beam capacity per pair 3 000 - 6 000 kg
RKL-SR90

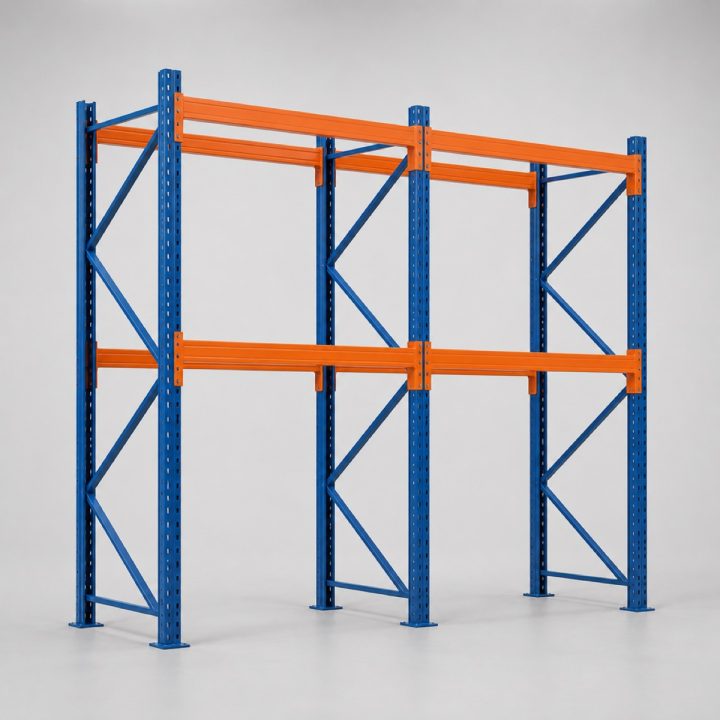

SR-90 Selective Pallet Racking
- Upright section 90 x 70 mm, 1.8 / 2.0 / 2.5 mm gauge
- Beam capacity per pair 1 500 - 3 500 kg
05 What you get
Four things that stay true after the invoice
Loads on the drawing
Beam capacity per pair, bay load and the unit load weight they were calculated at appear on the layout you approve, not only in the quotation.
A section series, not a one-off
Uprights and beams come from a standard punched series, so an extension in three years bolts onto the runs already standing.
Damage rules agreed up front
The handover pack states the deflection limit and the damage classification we work to, so your team knows what to report and when to unload a bay.
Inspection after handover
We set the periodic racking inspection interval, carry it out, and supply the report with the replacement components it calls for.
06 Where it is installed
Same components, four different design cases
Clear height, temperature, pick rate and truck type change the answer far more than the industry name does.
E-commerce distribution
Thousands of SKUs and a pick face that changes every quarter. Selective racking over a longspan pick level keeps every pallet reachable without rebuilding the run.
Cold storage

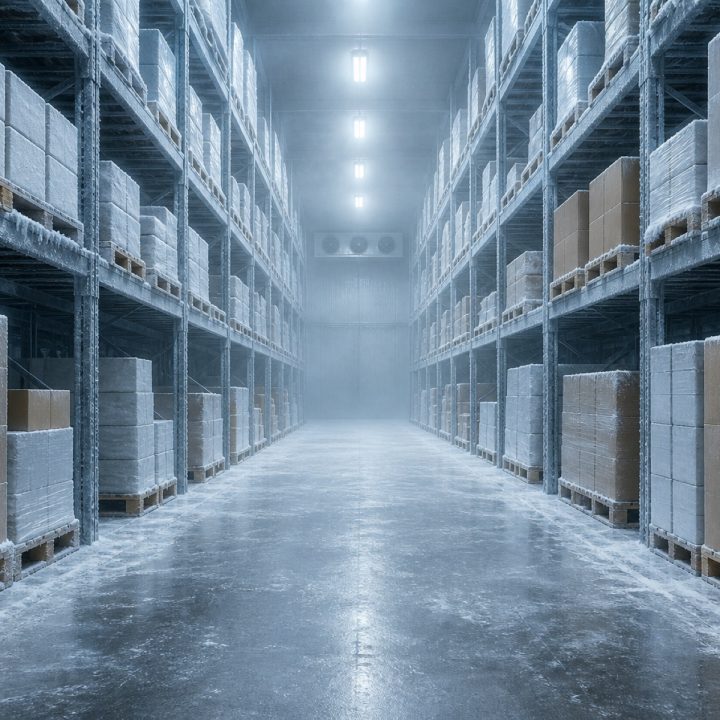

Every cubic metre is refrigerated, so density wins. Shuttle or drive-in lanes with a hot-dip galvanised finish handle the condensation cycle at the door line.
Manufacturing stores
Mixed unit loads: pallets, long bar stock and small parts in the same building. Cantilever arms, mezzanine floors and longspan shelving share one upright series.
Retrofit and reconfiguration
A building you already occupy, racking already standing. We resurvey the runs, reuse what still passes and change the beam levels around the new pallet.
07 Technical notes
Field notes on racking design and inspection
Drive-in or radio shuttle: choosing density for cold storage
Both remove aisles. They differ on lane depth, damage, pallet quality and where the cost sits, and in a freezer those differences are not marginal.
What a racking inspection actually looks for
Four categories of finding, why verticality matters more than dents, and what a useful report gives you that a walk-round does not.
How beam capacity and bay load actually interact
Two different numbers, two different failure modes, and the mistake that puts twelve tonnes on a frame rated for nine.
08 Talk to a racking engineer
Send the pallet data. We will send the layout.
Pallet dimensions and weight, clear height, truck type and the pallet positions you need. You get a bay layout, an upright and beam specification, and the load figures they were calculated at.
Attach a floor plan or a pallet list if you have one. It removes a whole round of questions.
