Reverse Osmosis
Clearflow RO-BW 120
Two-stage brackish RO skid for boiler make-up and general process duty.
- 12 m³/hPermeate
- 99.50 %Rejection
- 75 %Recovery
- 0.86 kWh/m³Specific energy
Equipment catalogue
Reverse osmosis, ultrafiltration, nanofiltration, EDI, reuse and desalination trains — every model with its projected envelope.
Reverse Osmosis
Clearflow RO-BW 400
Tapered two-stage brackish RO rack for continuous demineralised water supply.
- 40 m³/hPermeate
- 99.55 %Rejection
- 78 %Recovery
- 0.89 kWh/m³Specific energy
Seawater Desalination
Clearflow RO-SW 450
Seawater RO train with isobaric energy recovery for coastal potable and process supply.
- 45 m³/hPermeate
- 99.75 %Rejection
- 45 %Recovery
- 2.62 kWh/m³Specific energy
Seawater Desalination
Clearflow RO-SW 2000
Full seawater desalination hall — six parallel banks with isobaric energy recovery.
- 200 m³/hPermeate
- 99.78 %Rejection
- 45 %Recovery
- 2.58 kWh/m³Specific energy
Ultrafiltration
Clearflow UF-HC 150
Compact hollow-fibre UF skid delivering SDI15 below 3 to a downstream RO train.
- 15 m³/hPermeate
- 99.99 %Rejection
- 92 %Recovery
- 0.12 kWh/m³Specific energy
Ultrafiltration
Clearflow UF-PV 600
Outside-in PVDF ultrafiltration rack on fixed-flux control for high-turbidity feeds.
- 60 m³/hPermeate
- 99.99 %Rejection
- 93 %Recovery
- 0.14 kWh/m³Specific energy
Nanofiltration
Clearflow NF-SD 300
Nanofiltration softening train removing hardness, sulphate and colour without full demineralisation.
- 30 m³/hPermeate
- 92.00 %Rejection
- 75 %Recovery
- 0.61 kWh/m³Specific energy

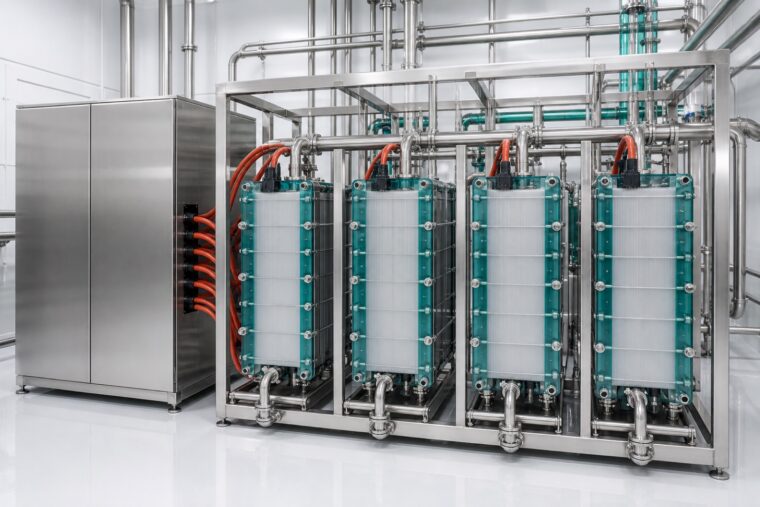

Electrodeionization
Clearflow EDI-ST 40
Continuous electrodeionization polisher taking RO permeate to 18.2 MΩ·cm without regenerant chemicals.
- 4 m³/hPermeate
- 99.90 %Rejection
- 95 %Recovery
- 0.16 kWh/m³Specific energy

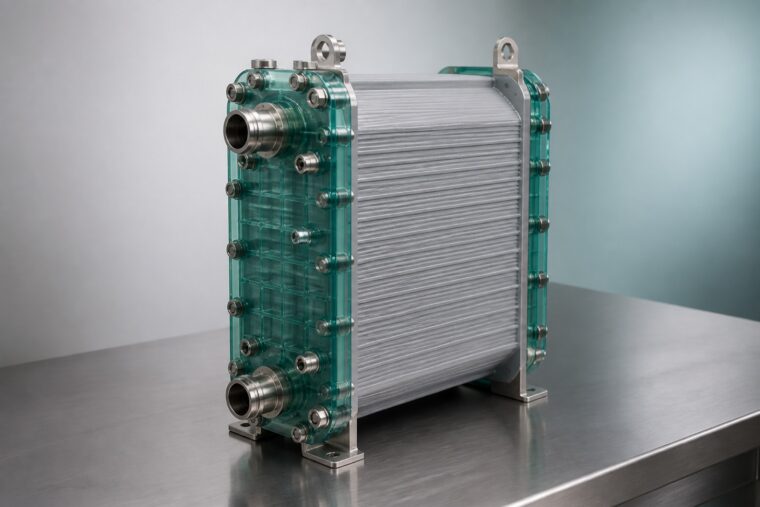

Electrodeionization
Clearflow EDI-XL 120
High-capacity EDI bank for power station and microelectronics polishing duty.
- 12 m³/hPermeate
- 99.92 %Rejection
- 95 %Recovery
- 0.18 kWh/m³Specific energy
Water Reuse
Clearflow MBR-RX 900
Membrane bioreactor for tertiary effluent reuse, delivering RO-ready filtrate from mixed liquor.
- 90 m³/hPermeate
- 99.99 %Rejection
- 96 %Recovery
- 0.55 kWh/m³Specific energy

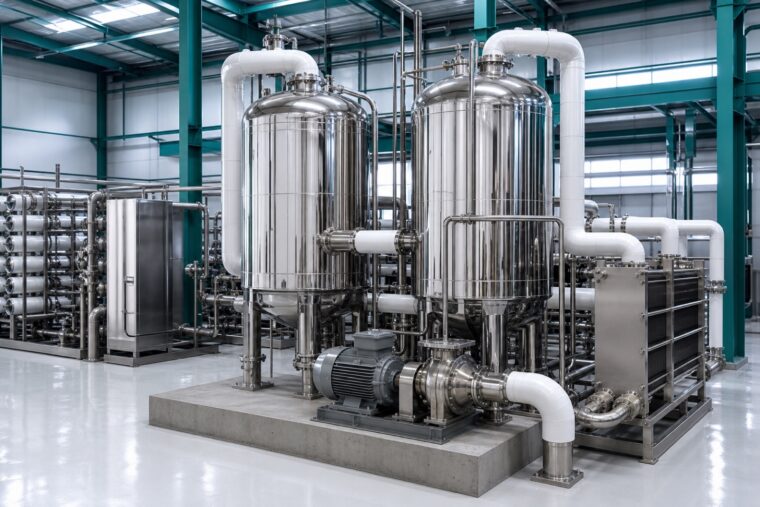

Water Reuse
Clearflow ZLD-BC 250
High-recovery brine concentration stage for zero-liquid-discharge and minimum-liquid-discharge schemes.
- 25 m³/hPermeate
- 99.30 %Rejection
- 90 %Recovery
- 3.85 kWh/m³Specific energy

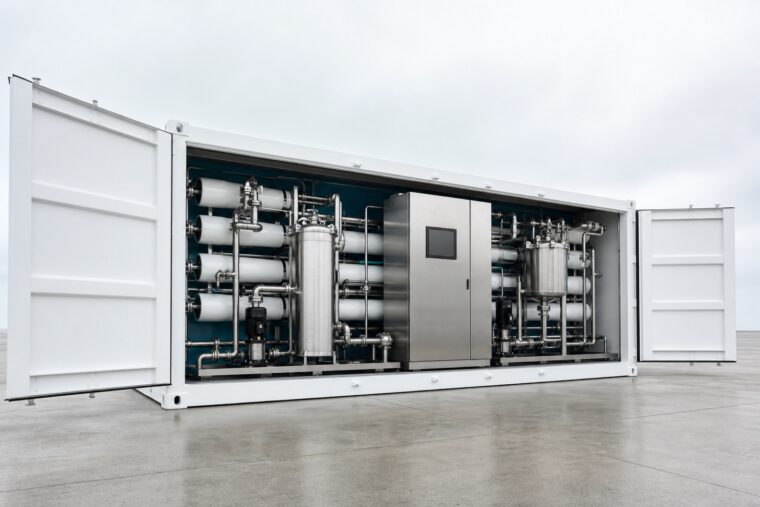

Containerised Skids
Clearflow SKID-MC 60
Plug-and-play containerised RO plant with integrated pre-treatment, CIP and telemetry.
- 6 m³/hPermeate
- 99.45 %Rejection
- 72 %Recovery
- 1.34 kWh/m³Specific energy
Send us the feed water analysis
Give us a TDS profile, a target permeate spec and a duty flow. Our process desk returns a projected array, a specific-energy figure and a budget envelope — normally inside two working days.
